Product Information

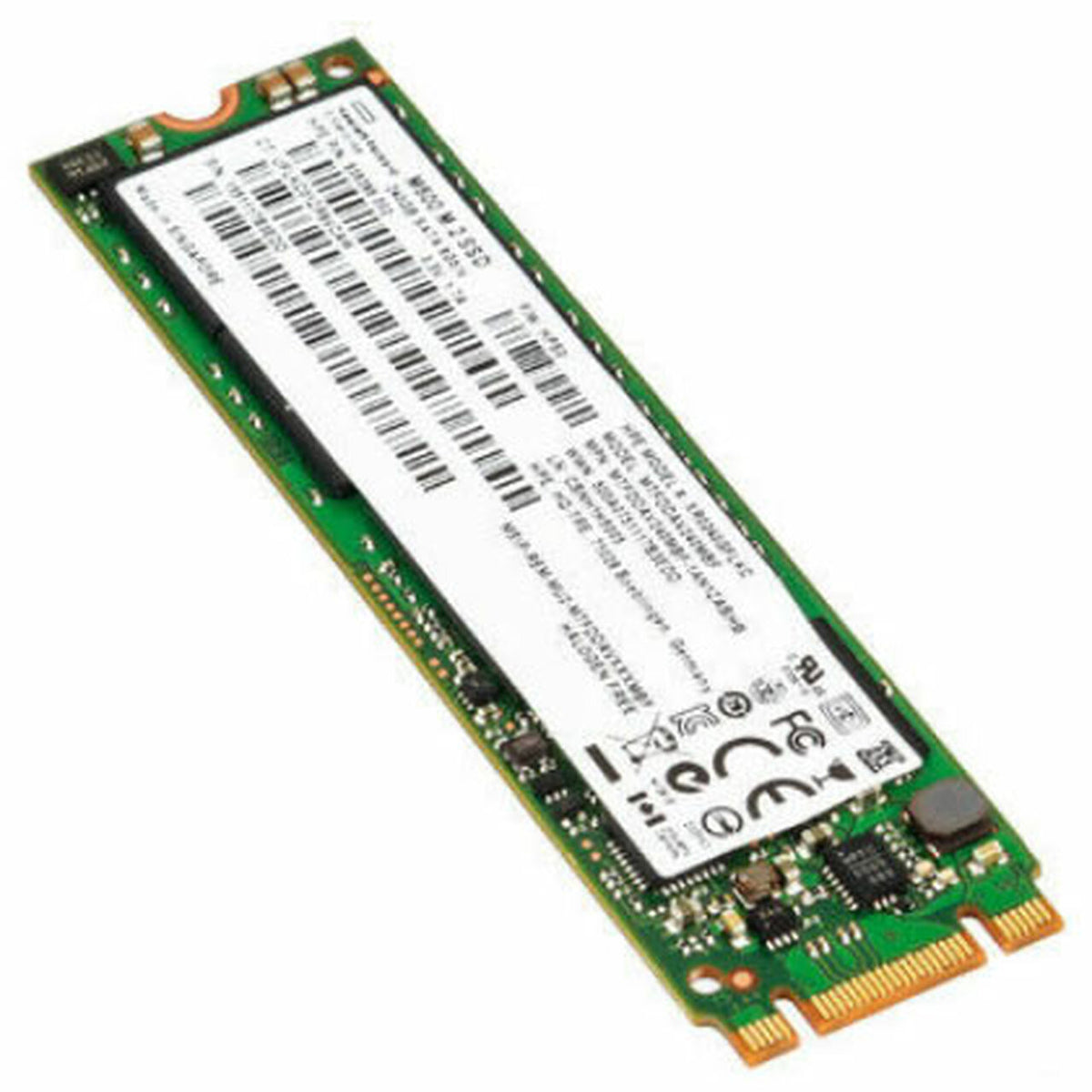

The HPE VR000150GWEPP is a 150GB read intensive solid state drive in the M.2 2280 form factor with a 6Gb SATA interface. The drive runs HPE digitally signed firmware. It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 150GB capacity
- SATA 6Gb/s interface
- M.2 2280 form factor
- Read Intensive workload
- Digitally signed firmware
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: VR000150GWEPP
Option Part Number: 875317-B21
Spare Part Number: 875835-001
Model Number: VR000150GWEPP
Assembly Number: 870143-001
General
Device Type: Solid State Drive
Capacity: 150 GB
Form Factor: M.2 2280
Interface: SATA 6Gbps
NAND Flash Memory Type: Multi-Level Cell (MLC)
Features: Digitally Signed Firmware
Workload Type: Read Intensive
Platform Supported: HPE Mainstream Compute Platforms
Height: 2280 M.2
Performance
Endurance DWPD: 0.30
Drive Transfer Rate: 600 MBps (external)
MAX Seq. Reads Throughput (MiB/s): 190
MAX Seq. Writes Throughput (MiB/s): 175
Random Read IOPS (4KiB, Q=16): 41000
Random Write IOPS (4KiB, Q=16): 6000
Average Latency: 150 μs
Expansion & Connectivity
Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: M.2 2280 Power Consumption Idle Time: 0.72 Watt
Random Read: 2.06 Watt
Random Write: 2.06 Watt
Sequential Read: 2.24 Watt
Sequential Write: 2.55 Watt
Random Read/Write: 2.06 Watt
Compatible Systems
- HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10
- HPE ProLiant BL Series: BL460c Gen10
- HPE ProLiant DL Series: DL120 Gen9, DL120 Gen9 Entry, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL160 Gen9 Thoughtspot Server, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Base, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL20 Gen9 Special Server, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block, DL380 Gen9 Special, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 for SAP HANA Compute Block, DL560 Gen10 Performance
- HPE ProLiant ML Series: ML110 Gen10, ML110 Gen10 Entry, ML110 Gen10 Performance, ML110 Gen10 Solution, ML350 Gen10, ML350 Gen10 Base, ML350 Gen10 Entry, ML350 Gen10 High Performance, ML350 Gen10 Performance, ML350 Gen10 SMB, ML350 Gen10 Solution, ML350 Gen10 Special Server, ML350 Gen10 Sub-Entry
- HPE ProLiant XL Series: XL260a Gen9, XL260a Gen9 Compute Tray, XL2x260w
- HPE Synergy 480 Gen10 Base Compute Module, 480 Gen10 Compute Module, 480 Gen10 Entry Compute Module, 480 Gen10 Performance Compute Module, 480 Gen10 Premium Backplane Compute Module, 480 Gen10 Standard BackPlane Compute Module, 480 Gen10 w/o Drives Compute Module, 660 Gen10 Base Compute Module, 660 Gen10 Compute Module, 660 Gen10 Entry Compute Module, 660 Gen10 Performance Compute Module, 660 Gen10 Premium Compute Module
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
