Product Information

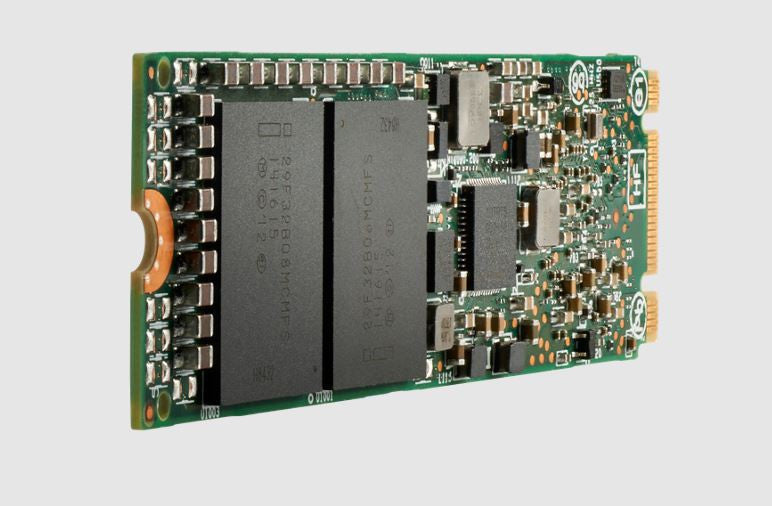

The HPE VR000480GWEPR gives you 480GB of read intensive flash storage in an M.2 2280 form factor SSD with a 6Gb SATA interface. The drive uses MLC NAND and runs HPE digitally signed firmware. It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 480GB capacity
- SATA 6Gb/s interface
- M.2 2280 form factor
- Read Intensive workload
- MLC NAND
- Digitally signed firmware
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: VR000480GWEPR
Option Part Number: 875319-B21
Spare Part Number: 875836-001
Model Number: VR000480GWEPR
Assembly Number: 870143-003
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 480 GB
Form Factor: M.2 2280
Interface: SATA 6Gbps
NAND Flash Memory Type: Multi-level cell (MLC)
Plug Type: Hot Pluggable
Workload Type: Read Intensive
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Performance
Endurance DWPD (Drive Writes Per Day): 0.3
Drive Transfer Rate: 6 Gb/sec (external)
MAX Seq. Reads Throughput (MiB/s): 365
MAX Seq. Writes Throughput (MiB/s): 275
Random Read Average Latency uSec (4KiB,Q1): 170
Random Write Average Latency uSec (4KiB,Q1): 100
Random Read IOPS (4KiB, Q=16): 49000
Random Write IOPS (4KiB, Q=16): 11900
MAX Random Read IOPS (4KiB): 50000@Q32
MAX Random Write IOPS (4KiB): 11900@Q4
Expansion & Connectivity
Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: M.2 2280 Power Consumption Idle Time: 0.67 Watt
Random Read: 2.44 Watt
Random Write: 2.44 Watt
Sequential Read: 2.91 Watt
Sequential Write: 3.33 Watt
Random Read/Write: 2.44 Watt
Compatible Systems
- HPE ProLiant BL Series: BL460c Gen10
- HPE ProLiant DL Series: DL120 Gen9, DL120 Gen9 Entry, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL160 Gen9 Thoughtspot Server, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Base, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL20 Gen9 Special Server, DL360 Gen10, DL360 Gen10 Base, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block, DL380 Gen9 Special, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 Performance
- HPE ProLiant ML Series: ML110 Gen10, ML110 Gen10 Entry, ML110 Gen10 Performance, ML110 Gen10 Solution, ML350 Gen10, ML350 Gen10 Base, ML350 Gen10 Entry, ML350 Gen10 High Performance, ML350 Gen10 Performance, ML350 Gen10 SMB, ML350 Gen10 Solution, ML350 Gen10 Special Server, ML350 Gen10 Sub-Entry
- HPE ProLiant XL Series: XL260a Gen9, XL260a Gen9 Compute Tray, XL2x260w
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
