Product Information

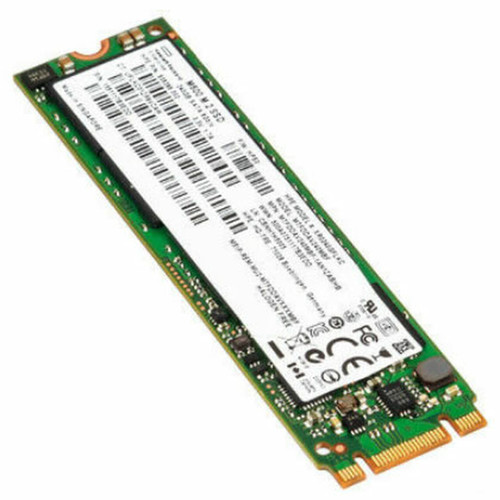

The HPE VR000960GWFME gives you 960GB of read intensive flash storage in an M.2 2280 form factor SSD with a 6Gb SATA interface. The drive runs HPE digitally signed firmware. It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 960GB capacity
- SATA 6Gb/s interface
- M.2 2280 form factor
- Read Intensive workload
- Digitally signed firmware
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: VR000960GWFME
Option Part Number: 875500-B21
Spare Part Number: 875856-001
Model Number: VR000960GWFME
Assembly Number: 871628-003
General
Device Type: Solid State Drive - Internal
Capacity: 960 GB
Form Factor: M.2 2280
Interface: SATA 6Gbps
NAND Flash Memory Type: Triple-Level Cell (TLC)
Features: Digitally Signed Firmware
Plug Type: Non-Hot Pluggable
Workload Type: Read Intensive
Platform Supported: HPE Mainstream Compute Platforms
Height: 2280 M.2
Performance
30 Days Writes: 900
Endurance DWPD: 0.50
Drive Transfer Rate: 600 MBps (external)
MAX Seq. Reads Throughput (MiB/s): 500
MAX Seq. Writes Throughput (MiB/s): 465
Random Read Average Latency uSec (4KiB,Q1): 130
Random Write Average Latency uSec (4KiB,Q1): 40
Random Read IOPS (4KiB, Q=16): 61000
Random Write IOPS (4KiB, Q=16): 41000
Max Random Read IOPS (4KiB): 67000@Q32
Max Random Write IOPS (4KiB): 41000@Q4
Expansion & Connectivity
Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: M.2 2280
Power Consumption
Idle Time: 1.07 Watt
Random Read: 3.17 Watt
Random Write: 3.17 Watt
Sequential Read: 3.82 Watt
Sequential Write: 5.62 Watt
Random Read/Write: 3.10 Watt
Power MAX: 6.00 Watt
Compatible Systems
- HPE ProLiant BL Series: BL460c Gen10
- HPE ProLiant DL Series: DL180 Gen10 SMB, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9, DL20 Gen9 Base, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Special Server, DL325 Gen10 Base, DL325 Gen10 Plus, DL325 Gen10 Solution, DL360 Gen10 Base, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Performance, DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform, DL388 Gen9, DL388 Gen9 Base
- HPE ProLiant ML Series: ML350 Gen10, ML350 Gen10 Base, ML350 Gen10 Entry, ML350 Gen10 High Performance, ML350 Gen10 Performance, ML350 Gen10 SMB, ML350 Gen10 Solution, ML350 Gen10 Special Server, ML350 Gen10 Sub-Entry, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance, XL2x260w
- HPE Synergy 480 Gen10 Base Compute Module, 480 Gen10 Entry Compute Module, 480 Gen10 Performance Compute Module, 480 Gen10 Premium Backplane Compute Module, 480 Gen10 Standard BackPlane Compute Module, 480 Gen10 w/o Drives Compute Module, 660 Gen10 Base Compute Module, 660 Gen10 Compute Module, 660 Gen10 Entry Compute Module, 660 Gen10 Performance Compute Module, 660 Gen10 Premium Compute Module
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
