Product Information

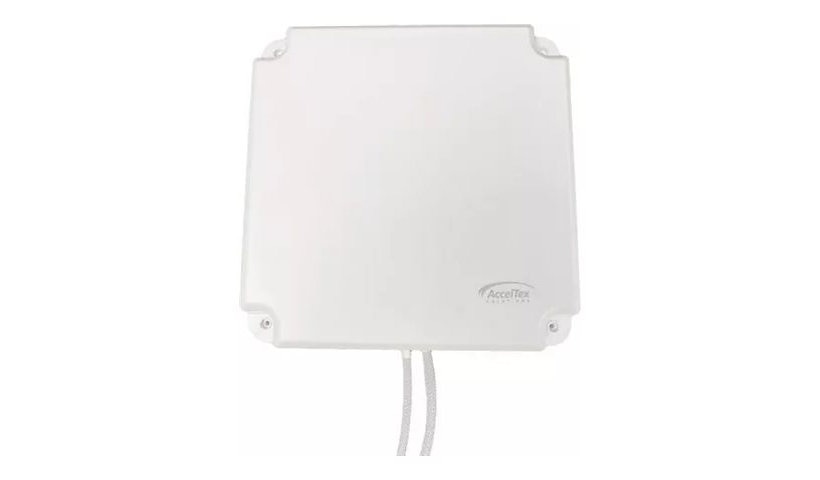

The Hubbell AccelTex ATS-01150 is an 8 element directional patch antenna covering 2.4, 5 and 6 GHz with 6 dBi gain and a 70° by 70° beam. It uses eight DART plugs, is rated -40 to 158 °F for indoor or outdoor use and mounts flush or on a wall.
Key Features
- Tri-band 2.4 / 5 / 6 GHz
- 6 dBi directional patch
- 70° x 70° beam
- 8 x DART plugs
- Indoor / outdoor
- Flush or wall mount
Product Information
Brand: AccelTex Solutions
Manufacturer: AccelTex
Product Line: Hubbell
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 6 dBi
Antenna Placement: Flush mount, Wall-mountable
Antenna Compatibility: 802.11ac, 802.11n
Frequency Range: 2.4 - 2.48 GHz, 5.15 - 5.85 GHz, 6 - 7.125 GHz
Signaling Type: Wi-Fi
Directivity: Directional
Features: > 30 dB isolation, 134mph (216km/h) rated wind velocity, 50W max. input power (per port), Vertical polarisation
Connectivity
Connector Provided: 8 x RF connector DART plug
Technical Information
Impedance: 50 ohm
Antenna Form Type: Patch
Horizontal Beamwidth: 70°
Vertical Beamwidth: 70°
Voltage Standing Wave Ratio (VSWR): 1.5:1 - 2.0:1
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Indoor, Outdoor
Materials: Acrylonitrile butadiene styrene (ABS)
Dimensions and Weight
Height: 11.8 inch
Width: 11.8 inch
Depth: 2.3 inch
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
