Product Information

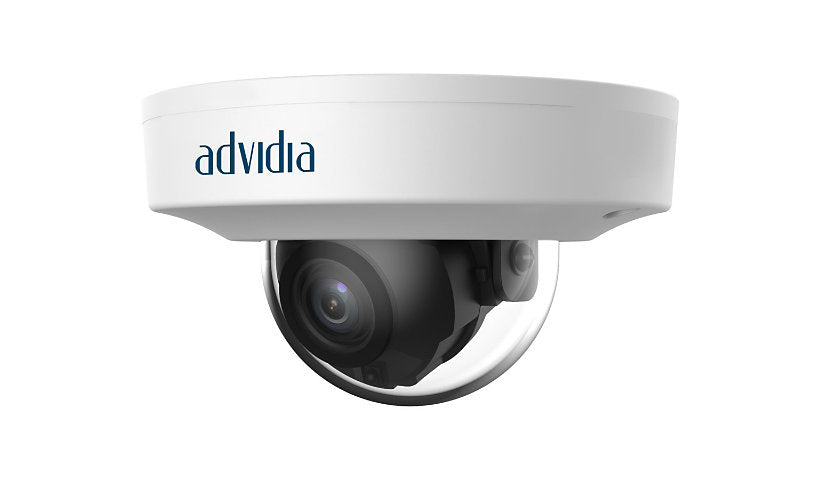

The Advidia M-45-FW-V2 is a 4 MP indoor dome recording 2688 x 1520 at 30 fps with a 1/2.7 inch sensor and 2.8 mm lens (101 degree view). It has IR up to 98 ft, 120 dB WDR, a built in mic, human body and intrusion detection, and runs on 12 V DC or PoE at 4.5 W. A Video Insight VMS license is bundled. Low profile design.
Key Features
- 4 MP, 2688 x 1520
- 2.8 mm, 101 degree view
- IR up to 98 ft
- 120 dB WDR, mic
- Video Insight VMS license
- 12 V DC or PoE, 4.5 W
Product Information
Brand: Advidia
Manufacturer: i-PRO Americas
Product Line: Advidia
Model: M-45-FW-V2
Packaged Quantity: 1
Country: Rest of APAC, United States
Network and Communication
Connectivity Technology: Wired
Features: 0 - 346° rotation range, 3-Axis Adjustment, Audio Detection, Backlight Compensation (BLC), Defog, Digital Noise Reduction, Highlight Compensation (HLC), Human body detection, Intrusion detection, Motion Detection, Region of Interest (ROI), Smart IR, Tampering alarm, White balance
Software Type: Video Insight VMS License
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, QOS, RTCP, RTP, RTSP, SMTP, SSL, TCP, UDP, UPnP
Ports: Audio line in/line out, LAN/power
Power
Low Voltage Power: DC 12 V / PoE
Power Consumption Operational: 4.5 watt
Memory and Processor
Memory Cards Supported: microSD Card
Technical Information
Angular Field of View (D, Max, Degree): 111.1
Angular Field of View (H, Max, Degree): 101.1
Angular Field of View (V, Max, Degree): 55.3
Infrared Distance: 98 ft
Infrared LEDs: Yes
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Tilt: -66 to +66
Motion Detection: Yes
Panning Range (degree): 0 to 348
Minimum Illumination: 0 lux - IR, 0.003 lux - color - F1.6 - AGC on
Total Pixels: 4,000,000 pixels
Image Sensor Size: 1/2.7"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/2.7
Min Focal Length: 2.8 millimetre
Sensor Size (metric): 9.4 mm (1/2.7")
Digital Video Capture Resolution: 2688 x 1520
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/100000 second (time unit)
Shutter Speed (Min): 1 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG, Ultra 265
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone
Touchscreen: No
Max Video Resolution: 2688 x 1520
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: = 95% RH (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor
Form Factor: Dome
Camera Mechanical Design: Pan / tilt
Dimensions and Weight
Height: 2.4 inch
Width: 4.3 inch
Depth: 4.3 inch
Weight: 7.76 ounce
