Product Information

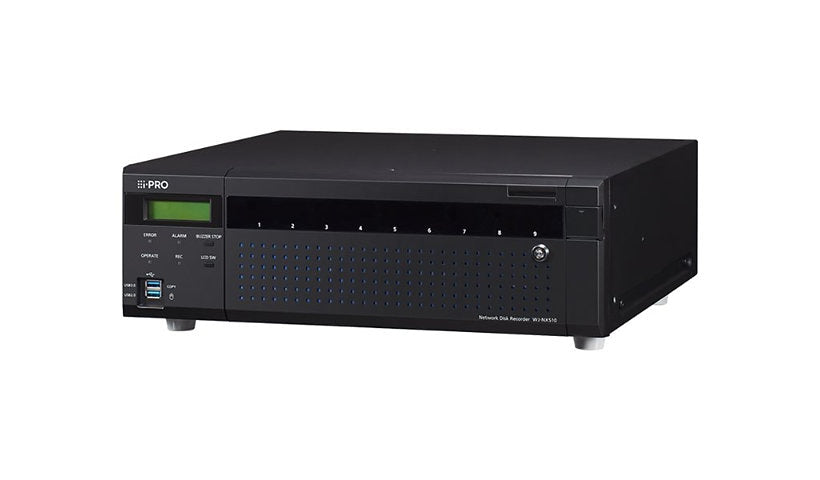

The WJ-NX510K from i-PRO's NX series is a 128 channel standalone NVR supporting up to 972 TB across nine drives, with 2 gigabit ports, 2 USB 3.0, 32 alarm inputs and 4 alarm outputs, ONVIF Profile S, email notification and event and system logs, in a zinc plated sheet metal case, 100 to 240 V, 145 W. No installed drive capacity is listed, please confirm.
Key Features
- 128 channel NVR
- Up to 972 TB
- 9 drive support
- 32 alarm in, 4 out
- 2 x gigabit, USB 3.0
- ONVIF Profile S
Product Information
Quantity Supported: 9
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO NX series
Model: WJ-NX510K
Device Type: Standalone NVR
Packaged Quantity: 1
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols: ARP, DNS, HTTP, HTTPS, ICMP, ICMPv6, IPv4, IPv6, NTP, RTP, RTSP, SMTP, SNMP, TCP/IP, UDP/IP
Network Ports: 10/100/1000Base-T x 2
Features #2: Plastic housing, RAID 1 support, RAID 5 support, RAID 6 support, SD Card Slot
Features: E-mail notification, Event log, ONVIF Profile S, SECC zinc plated sheet metal case, System log
Features: Plastic housing, RAID 1 support, RAID 5 support, RAID 6 support, SD Card Slot
Connectivity
Additional Ports: RJ-45, USB 3.0 x 2
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power Consumption: 145 watt
Memory and Processor
Min RAM Size: 4 GB
Supported Max Total Capacity: 972 TB
Technical Information
Alarm Ports: Alarm input x 32, Alarm output x 4
Display Modes: 12 split screens, 16 split screens, 2 split screens, 24 split screens, 3 split screens, 32 split screens, 4 split screens, 5 split screens, 6 split screens, 64 split screens, 7 split screens, 9 split screens
Playback Search: Camera, Date/time, Event, Video motion detection (VMD)
Record Events: Emergency, Event, Pre-event, Scheduled
Networked: Yes
Compression Format: AAC-LC, G.711, H.264, H.265, HEVC, JPEG
Video Channels: 128
Image Resolution: 1080x1920, 1200x1200, 1280x1280, 1280x720, 1280x960, 1440x1440, 1440x2560, 1520x2688, 1600x1200, 1728x3072, 1872x3328, 1920x1080, 2048x1536, 2048x2048, 2160x3840, 2192x2192, 2560x1440, 2560x1920, 2688x1520, 2816x2816, 2992x2992, 3072x1728, 3072x2304, 3328x1872, 360x640, 3840x2160, 640x360, 640x480, 720x1280, 800x600
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Dimensions and Weight
Height: 5.2 inch
Width: 16.9 inch
Depth: 16.3 inch
Weight: 28.66 lbs
Certifications and Listing
Compliant Standards: CAN/CSA-C22.2 No. 62368-1, FCC Part 15 B, FIPS 140-2 Level 3, NDAA, UL 62368-1
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
