Product Information

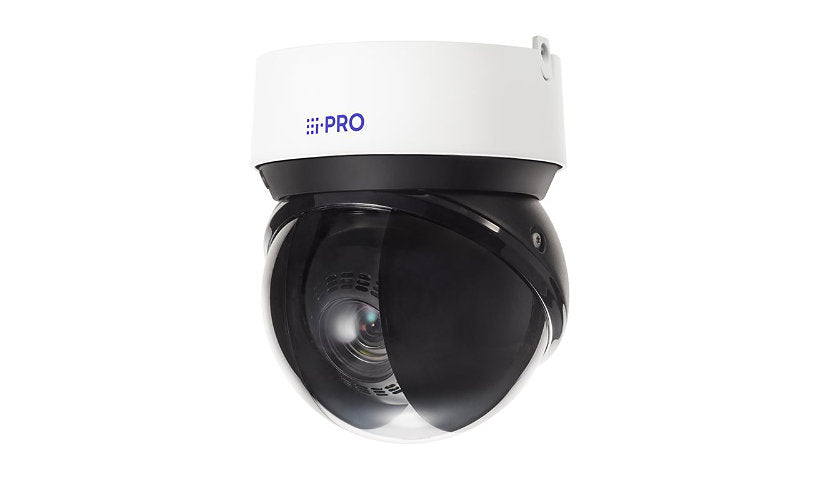

The i-PRO Rapid WV-S66700-Z3N is a 4K outdoor PTZ dome with a 4.5 to 135 mm lens for 30x optical zoom, pan speeds up to 700 degrees per second and 132 dB dynamic range. It has 256 presets, 32 privacy zones, two way audio and 3 alarm inputs, works from -50 to 60 C, and is rated IP66 and IK10, on 54 V DC or PoE++ Class 6 at 37.8 W. i-PRO white.
Key Features
- 4K outdoor PTZ
- 30x, 4.5 to 135 mm
- 132 dB dynamic range
- 256 presets
- IP66 and IK10
- 54 V or PoE++
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO Rapid
Model: WV-S66700-Z3N
Packaged Quantity: 1
Color: I-PRO White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-2 Level 3
Operating System Required: Android, Apple iOS 8.0 or higher
Features: 12.8m identify distance (wide), 127.8m detect distance (wide), 132 dB dynamic range, 1407.9m observe distance (tele), 16:9 aspect ratio, 25.6m recognize distance (wide), 256 preset positions, 32 privacy zones, 3519.7m detect distance (tele), 352m identify distance (tele), 4 video streams, 51.1m observe distance (wide), 703.9m recognize distance (tele), 802.1x authentication, Active ClearSight, Adaptive Black Stretch (ABS), AI Analytics, AI Engine, AI face detection, AI occupancy detection, AI people detection, AI Sound Classification, AI Tracking, AI vehicle detection, Alteration detection, Ambarella CV22 SoC, Audio alarm, Audio Detection, Auto pan function, Auto patrol, Auto Tracing White Balance, Automatic Gain Control (AGC), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Brute force delay protection, Built-in OSD menu, Device Certificate GlobalSign pre-installed, Die-cast aluminium housing, Digest authentication, Digital Noise Reduction, DORI coverage, E-mail alerts, Fog compensation, Full duplex audio, Glass-break detection, Gunshot detection, Gyroscopic Image Stabilizer, Half duplex audio, Highlight Compensation (HLC), Host authentication, HTTPs encryption, Image transmission log, Intelligent Auto Tracking, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Polycarbonate bubble, Preset sequence, Privacy Zone, Scene Change Detection (SCD), Self return, Smart GOP, Smart P-picture control, Super Dynamic technology, System log, Up to 14 users, User authentication, Variable Image Quality on Specified area (VIQS), Video Motion Detection (VMD)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DHCPv6, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, MLD, MQTT, NTCIP, NTP, RTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line in - 3.5 mm stereo jack, Audio line out - 3.5 mm stereo jack, LAN/power - RJ-45
Power
Low Voltage Power: DC 54 V / PoE++ Class 6
Power Consumption Operational: 37.8 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 62
Angular Field of View (V, Max, Degree): 37
Focus Modes: Motorized
Max Focal Length: 135 millimetre
Optical Zoom: 30
Alarm Input Quantity: 3
Video Capture: 1280 x 720 @ 25/30 fps, 1920 x 1080 @ 25/30 fps, 2560 x 1440 @ 25/30 fps, 320 x 180 @ 25/30 fps, 3840 x 2160 @ 25/30 fps, 640 x 360 @ 25/30 fps
Recording Formats: JPEG
Digital Zoom: 90
Max Panning Speed (degree/sec): 700
Max Tilting Speed (degree/sec): 500
Tilt: -20 to +90
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 2.5
Angular Field of View (V, Min, Degree): 1.4
Min Focus Distance: 10 ft
Minimum Illumination: 0.006 lux - B&W - F1.8 - 50 IRE - shutter 16/30 sec, 0.012 lux - color - F1.8 - 50 IRE - shutter 16/30 sec, 0.1 lux - B&W - F1.8 - 50 IRE - shutter 1/30 sec, 0.13 lux - color - F1.8 - 30 IRE - shutter 1/30 sec, 0.19 lux - color - F1.8 - 50 IRE - shutter 1/30 sec
Total Pixels: 8,300,000 pixels
Video Modes: 4K
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.8-4.7
Min Focal Length: 4.5 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 2560 x 1440, 320 x 180, 3840 x 2160, 640 x 360
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/25 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Supported Host Device Platform: Android, iOS
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Tamper / dust / water / shock / wind / corrosion / vandal resistant
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 8.1 inch
Width: 6.6 inch
Depth: 6.6 inch
Weight: 6.61 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
