Product Information

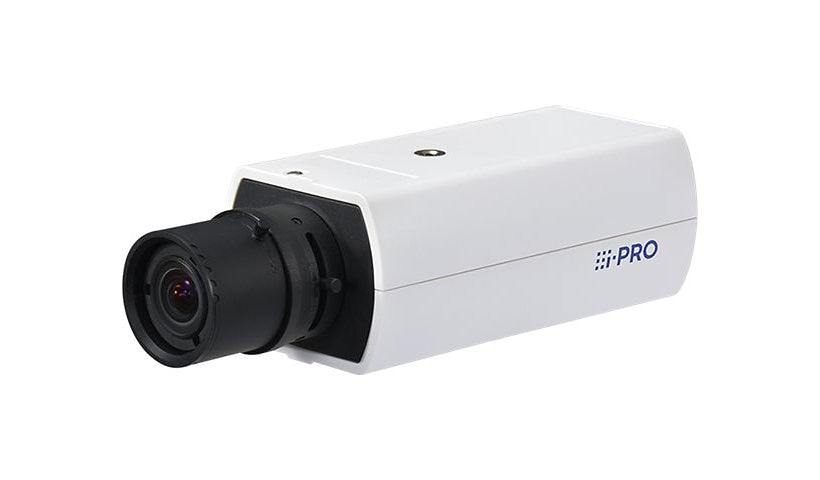

The i-PRO S-Series WV-S1136A is an indoor 2 MP box camera with up to 2048 x 1536 resolution at up to 60 fps. Its AI engine handles person, face and vehicle detection plus sound classification, and it has a built in mic, stereo speakers, 3 alarm inputs and 2 outputs, on 12 V DC or PoE Class 2 at 5.8 W. White.
Key Features
- 2 MP box camera
- Up to 60 fps
- AI detection
- Mic, stereo speakers
- 3 in / 2 out alarm
- 12 V DC or PoE, indoor
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO S-Series
Model: WV-S1136A
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: AI Analytics, AI control, AI face detection, AI non mask detection, AI occupancy detection, AI Person Detection, AI Privacy Guard, AI Sound Classification, AI vehicle detection, Ambarella CV25M CPU, Audio Detection, Auto Back Focus (ABF), Brightness control, E-mail alerts, Group of Pictures (GOP), Iintelligent Video Motion Detection (i-VMD), Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Zone, Scene Change Detection, Unicast Streaming, Variable Image Quality on Specified area (VIQS), Video Motion Detector (VMD)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MLD, MQTT, NTP, RTP, RTSP, SFTP, SNMP 1, SNMP 2, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, LAN - RJ-45
Power
Low Voltage Power: DC 12 V / PoE Class 2
Power Device Form Factor: External
Power Device Type: Power adapter / PoE
Power Consumption Operational: 5.8 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Video Signals: VGA
Alarm Input Quantity: 3
Alarm Output Quantity: 2
Video Capture: 1280 x 720 @ 50 fps, 1920 x 1080 @ 60 fps, 2048 x 1536 @ 15 fps, 320 x 180 @ 25 fps, 640 x 360 @ 30 fps
Recording Formats: JPEG
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 5.57
Angular Field of View (V, Min, Degree): 3.13
Minimum Illumination: 0.004 lux - B&W - F1.2 - 50 IRE - shutter 1/30 sec, 0.006 lux - color - F1.2 - 30 IRE - shutter 1/30 sec, 0.008 lux - color - F1.2 - 50 IRE - shutter 1/30 sec
Video Modes: 1080p
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2048 x 1536, 320 x 180, 640 x 360
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/60 second (time unit)
Video Formats: H.264, H.265, MJPEG, NTSC, PAL
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Built-in microphone, Built-in stereo speakers
Touchscreen: No
Max Video Resolution: 2048 x 1536
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor
Form Factor: Box
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.2 inch
Width: 3 inch
Depth: 5.7 inch
Weight: 13.05 ounce
