Product Information

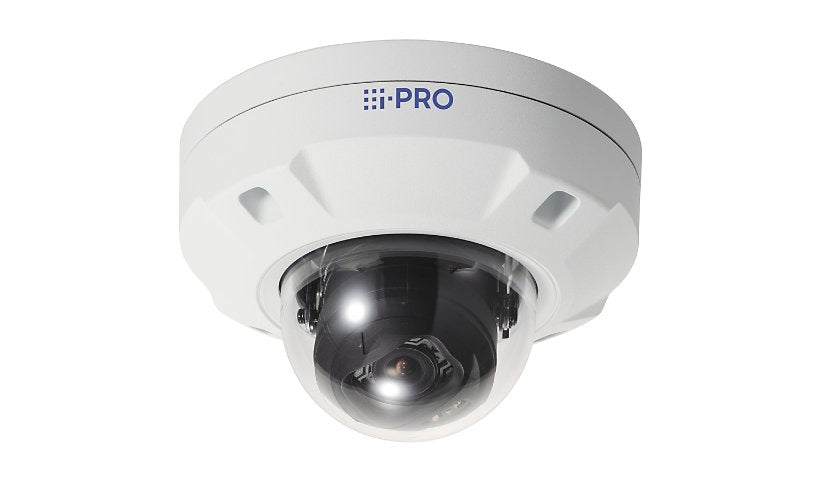

The i-PRO S-Series WV-S25700-V2LN is a 4K outdoor vandal resistant dome with a 1/1.8 inch sensor and 4.3 to 8.6 mm motorized lens (2x). It has an AI engine, Intelligent Auto, color night vision, ClearSight coating, built in IR, two way audio, 3 alarm inputs and FIPS 140-2 Level 3, on 12 V DC or PoE. NDAA, white.
Key Features
- 4K at 30 fps
- 4.3 to 8.6 mm, 2x
- AI engine
- Built in IR, ClearSight
- Two way audio, 3 alarm in
- FIPS L3, NDAA
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO S-Series
Model: WV-S25700-V2LN
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-2 Level 3
Features: 16:9 aspect ratio, 180° image rotation, 270° image rotation, 4:3 aspect ratio, 8 privacy zones, 90° image rotation, Adaptive Black Stretch (ABS), AI Analytics, AI Engine, AI face detection, AI non mask detection, AI occupancy detection, AI Sound Classification, AI vehicle detection, Ambarella CV22 CPU, Audio alarm, Audio Detection, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), ClearSight Coating, Constant Bit Rate (CBR), Device Certificate GlobalSign pre-installed, Digital Noise Reduction, DORI coverage, E-mail alerts, Fog compensation, Full duplex audio, Half duplex audio, Heater, Highlight Compensation (HLC), Host authentication, Intelligent Auto (iA), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People Detection, Polycarbonate bubble, Scene Change Detection (SCD), Stainless steel housing, Super Dynamic technology, Temish element, User authentication, Variable Bit Rate (VBR), Variable Image Quality on Specified area (VIQS)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DHCPv6, DNS, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line in - 3.5 mm stereo jack, Audio line out - 3.5 mm stereo jack, LAN - RJ-45
Power
Low Voltage Power: DC 12 V / PoE
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 101
Angular Field of View (V, Max, Degree): 55
Focus Modes: Motorized
Infrared LEDs: Yes
Max Focal Length: 8.6 millimetre
Optical Zoom: 2
Alarm Input Quantity: 3
Recording Formats: JPEG
Tilt: -30 to +85
Motion Detection: Yes
Panning Range (degree): -194 to +166
Angular Field of View (H, Min, Degree): 52
Angular Field of View (V, Min, Degree): 29
Min Focus Distance: 3.3 ft
Minimum Illumination: 0 lux - B&W - F1.5 - 50 IRE - shutter 1/30 sec / infrared LEDs on, 0.03 lux - B&W - F1.5 - 50 IRE - shutter 1/30 sec, 0.04 lux - color - F1.5 - 30 IRE - shutter 1/30 sec, 0.06 lux - color - F1.5 - 50 IRE - shutter 1/30 sec
Video Modes: 4K
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Min Focal Length: 4.3 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 2560 x 1440, 320 x 180, 3840 x 2160, 640 x 360
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/25 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dustproof / waterproof / vandal-proof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.1 inch
Width: 6.1 inch
Depth: 6.1 inch
Weight: 2.43 lbs
