Product Information

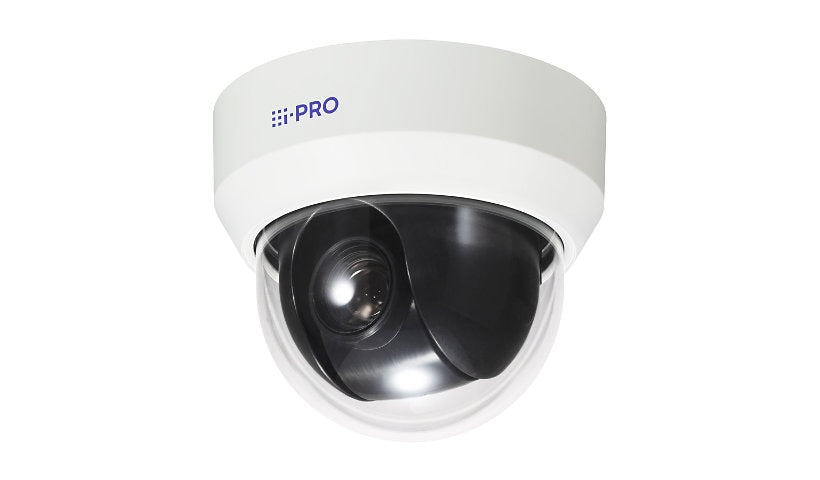

The i-PRO S-Series WV-S65501-Z1 is a 5 MP outdoor PTZ dome recording up to 3072 x 2304 with a 4.7 to 47 mm lens giving 10x optical zoom. AI auto tracking detects, zooms and follows intruders, with sound classification, 256 presets, two way audio, a video output and 3 alarm inputs, on 12 V DC or PoE+ Class 4.
Key Features
- 5 MP PTZ
- 10x optical zoom
- AI auto tracking
- 256 presets
- Two way audio, 3 alarm in
- 12 V DC or PoE+
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO S-Series
Model: WV-S65501-Z1
Packaged Quantity: 1
Color: Black, White
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: 256 preset positions, 32 privacy zones, Adaptive Black Stretch (ABS), AI Analytics, AI Sound Classification, Alteration detection, Ambarella CV22 CPU, Audio Detection, Auto pan function, Auto tracking, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Brute force delay protection, Built-in gyroscope, Color Night Vision, Constant Bit Rate (CBR), Device Certificate GlobalSign pre-installed, Digest authentication, Digital Noise Reduction, E-mail alerts, Fog compensation, Group of Pictures (GOP), Highlight Compensation (HLC), Host authentication, Image transmission log, Intelligent Auto (iA), Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Patrol Mode, Preset sequence, Scene Change Detection (SCD), Self return, Signed firmware, Super Dynamic technology, System log, Temish element, Unicast Streaming, User authentication, Variable Bit Rate (VBR), Variable Image Quality on Specified area (VIQS)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DHCPv6, DNS, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MLD, MQTT, NTCIP, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out - 3.5 mm stereo jack, Audio line-in/microphone - 3.5 mm stereo jack, LAN - RJ-45, Video output - 3.5 mm stereo jack
Power
Low Voltage Power: DC 12 V / PoE Plus Class 4
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 58
Angular Field of View (V, Max, Degree): 44
Focus Modes: Automatic
Max Focal Length: 47 millimetre
Optical Zoom: 10
Alarm Input Quantity: 3
Recording Formats: JPEG
Max Panning Speed (degree/sec): 500
Max Tilting Speed (degree/sec): 500
Tilt: -15 to +195
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 6.2
Angular Field of View (V, Min, Degree): 3.5
Min Focus Distance: 5 ft
Minimum Illumination: 0.004 lux - B&W - F1.6 - 50 IRE - shutter 16/30 sec, 0.007 lux - color - F1.6 - 50 IRE - shutter 16/30 sec, 0.06 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec, 0.08 lux - color - F1.6 - 30 IRE - shutter 1/30 sec, 0.11 lux - color - F1.6 - 50 IRE - shutter 1/30 sec
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-3.0
Min Focal Length: 4.7 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 2560 x 1920, 3072 x 1728, 3072 x 2304, 320 x 180, 320 x 240, 400 x 300, 640 x 360, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG, NTSC, PAL
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 3072 x 2304
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dust resistant / water resistant / shock resistant / wind resistant
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 5.5 inch
Width: 6.5 inch
Depth: 6.5 inch
Weight: 3.53 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
