Product Information

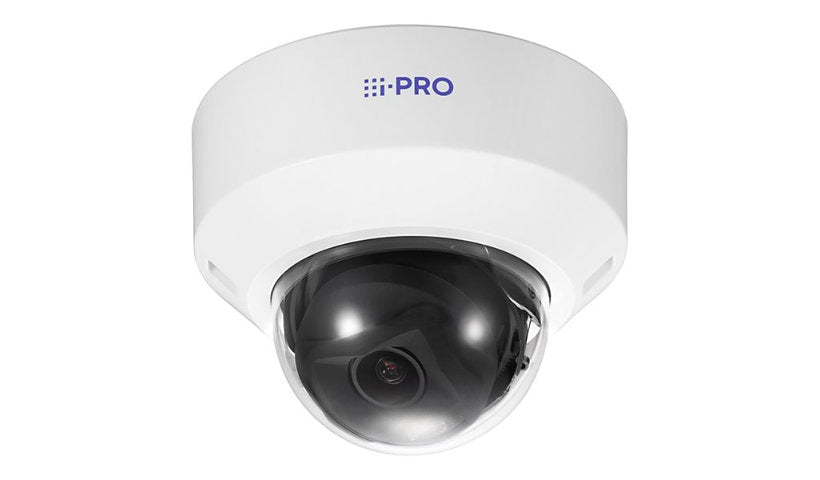

The i-PRO U-Series WV-U21350-V3L is a 2 MP indoor dome with a 3.2 to 10.2 mm lens (3.2x zoom), AI analytics and sound classification. It has audio in and out and runs on 48 V DC or PoE at 9.6 W, suited to offices, shops and hallways.
Key Features
- 2 MP indoor dome
- 3.2 to 10.2 mm, 3.2x
- AI analytics
- Sound classification
- Audio in and out
- 48 V or PoE, 9.6 W
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO U-Series
Packaged Quantity: 1
Color: I-PRO White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-3 Level 3
Operating System Required: Android, Apple iOS 8.0 or higher
Features: 270° image rotation, 802.1x authentication, Adaptive Black Stretch (ABS), AI Analytics, AI Sound Classification, Alteration detection, Analytics API, Audio Detection, Automatic Gain Control (AGC), Backlight Compensation (BLC), Brute force delay protection, Digest authentication, Digital Noise Reduction, Dynamic Range Adjustment, Fog compensation, Glass-break detection, Gunshot detection, Highlight Compensation (HLC), Host authentication, Image transmission log, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Zone, Scene Change Detection (SCD), Secure Boot, Signed firmware, System log, User authentication, Variable Image Quality on Specified area (VIQS), Video Motion Detection (VMD)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DHCPv6, DiffServ, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out - 3.5 mm stereo jack, Audio line-in/microphone - 3.5 mm stereo jack, LAN/power - RJ-45
Power
Low Voltage Power: DC 48 V / PoE
Power Consumption Operational: 9.6 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 112
Angular Field of View (V, Max, Degree): 57
Focus Modes: Motorized
Max Focal Length: 10.2 millimetre
Optical Zoom: 3.2
Recording Formats: JPEG
Digital Zoom: 9.6
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 30
Angular Field of View (V, Min, Degree): 17
Min Focus Distance: 6.6 ft
Minimum Illumination: 0 lux - B&W - F1.6 - 0 IRE, 0.002 lux - B&W - F1.6 - 50 IRE, 0.004 lux - color - F1.6 - 50 IRE, 0.03 lux - B&W - F1.6 - 50 IRE, 0.05 lux - color - F1.6 - 30 IRE, 0.06 lux - color - F1.6 - 50 IRE
Total Pixels: 2,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 180, 320 x 240, 640 x 360, 640 x 480
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/4000 second (time unit)
Shutter Speed (Min): 16/30 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Rated Current: 200 milliampere
Touchscreen: No
Supported Host Device Platform: Android, iOS
Max Video Resolution: 1920 x 1080
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4 inch
Width: 5.1 inch
Depth: 5.1 inch
Weight: 13.4 ounce
