Product Information

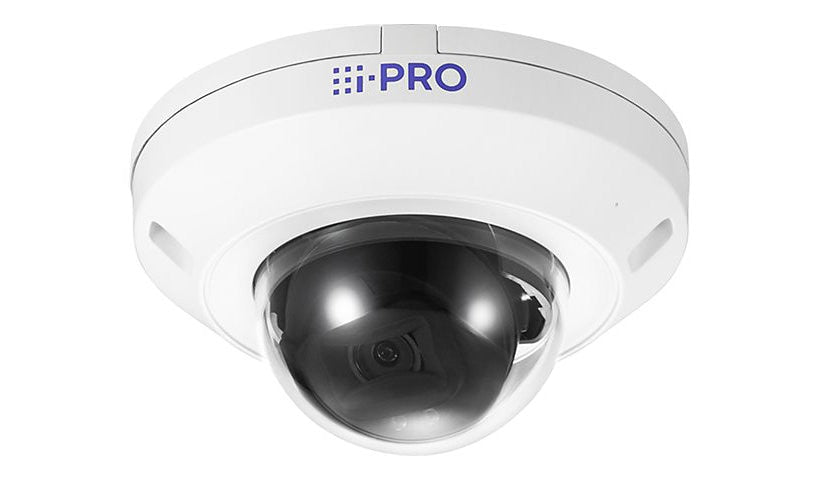

The i-PRO U-Series WV-U22550-F3L is a 5 MP indoor vandal resistant dome recording 2592 x 1944 at 30 fps through a 3.2 mm lens with a 97 degree view. It has 120 dB dynamic range, IR up to 92 ft, audio in and out, privacy zones and 4 video streams, and runs on 48 V DC or PoE at 9.6 W. i-PRO white.
Key Features
- 5 MP, 2592 x 1944
- 3.2 mm, 97 degree view
- IR up to 92 ft
- 120 dB dynamic range
- Audio in/out
- 48 V DC or PoE, indoor
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO U-Series
Model: WV-U22550-F3L
Packaged Quantity: 1
Color: I-PRO White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-3 Level 3
Features: 120 dB dynamic range, 16:9 aspect ratio, 180° image rotation, 270° image rotation, 4 motion detection zones, 4 video streams, 4:3 aspect ratio, 8 privacy zones, 8 VIQS zones, 802.1x authentication, 90° image rotation, Adaptive Black Stretch (ABS), AI Analytics, AI Video Motion Detection (AI-VMD), Alteration detection, Ambarella CV25M CPU, Audio recording, Auto ICR, Automatic Gain Control (AGC), Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Brute force delay protection, Constant Bit Rate (CBR), Device Certificate GlobalSign pre-installed, Die-cast aluminium housing, Digest authentication, Digital Noise Reduction, DORI coverage, Fog compensation, Full duplex audio, Group of Pictures (GOP), Half duplex audio, Highlight Compensation (HLC), Host authentication, Image transmission log, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Scene Change Detection (SCD), Signed firmware, Smart Coding Technology, Super Dynamic technology, System log, User authentication, Variable Bit Rate (VBR)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DHCPv6, DiffServ, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out - 3.5 mm stereo jack, Audio line-in/microphone - 3.5 mm stereo jack, LAN/power - RJ-45
Power
Low Voltage Power: DC 48 V / PoE
Power Consumption Operational: 9.6 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 97
Angular Field of View (V, Max, Degree): 71
Infrared Distance: 92 ft
Infrared LEDs: Yes
Digital Zoom: 4
Tilt: -30 to +80
Motion Detection: Yes
Panning Range (degree): -175 to +175
Angular Field of View (H, Min, Degree): 96
Angular Field of View (V, Min, Degree): 52
Min Focus Distance: 3.3 ft
Minimum Illumination: 0 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec / AGC on / infrared LEDs on, 0.004 lux - B&W - F2.0 - 50 IRE - shutter 16/30 sec / AGC on, 0.01 lux - color - F2.0 - 50 IRE - shutter 16/30 sec, 0.07 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec / AGC on, 0.11 lux - color - F2.0 - 30 IRE - shutter 1/30 sec, 0.16 lux - color - F2.0 - 50 IRE - shutter 1/30 sec
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/2.0
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 2560 x 1920, 2592 x 1944, 320 x 180, 320 x 240, 400 x 300, 640 x 360, 640 x 480, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 16/25 second (time unit)
Focal Length Control: Fixed focal
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Rated Current: 200 milliampere
Touchscreen: No
Max Video Resolution: 2592 x 1944
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor
Protection: Vandal-resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.4 inch
Width: 4.3 inch
Depth: 4.3 inch
Weight: 8.82 ounce
