Product Information

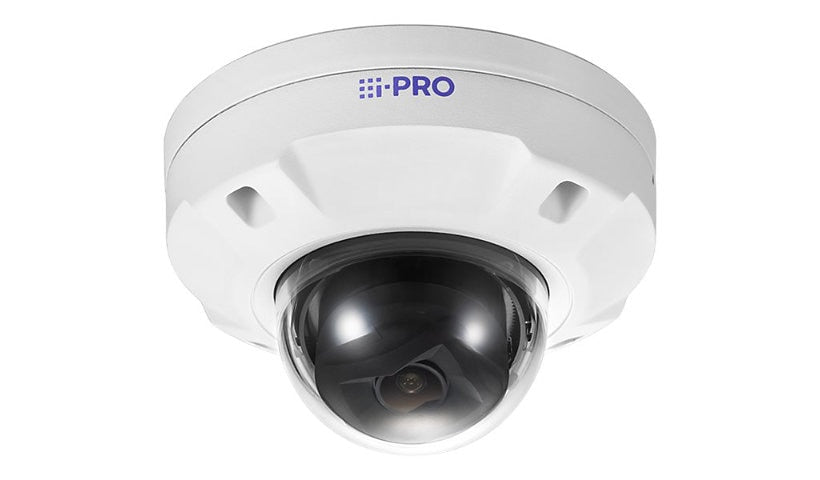

The i-PRO U-Series WV-U25751-V3L is a 4K outdoor dome recording 3840 x 2160 at up to 15 fps with a 3.2 to 10.2 mm lens (3.2x) and a 110 degree maximum view. It has 120 dB dynamic range, AI video motion detection and privacy zones, and runs on 48 V DC or PoE Class 3 at 9.6 W. Dust, water, shock and corrosion resistant, i-PRO white.
Key Features
- 4K, up to 15 fps
- 3.2 to 10.2 mm, 3.2x
- 120 dB dynamic range
- AI video motion detection
- Corrosion resistant
- 48 V DC or PoE
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO U-Series
Model: WV-U25751-V3L
Packaged Quantity: 1
Color: I-PRO White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 114.6m observe distance, 120 dB dynamic range, 180° image rotation, 270° image rotation, 286.6m detect distance, 57.3m recognize distance, 8 privacy zones, 90° image rotation, AI Video Motion Detection (AI-VMD), Alarm notifications, Ambarella CV25M CPU, Auto ICR, Auto VIQS, Device Certificate GlobalSign pre-installed, Digital Noise Reduction, DORI coverage, E-mail alerts, Group of Pictures (GOP), Host authentication, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Scene Change Detection (SCD), Unicast Streaming, Up to 14 users, User authentication, Variable Bit Rate (VBR), Variable Image Quality on Specified area (VIQS), Video Motion Detection (VMD)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DHCPv6, DiffServ, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2, SNMP 3, TCP/IP, UDP/IP, UPnP
Ports: LAN/power - RJ-45
Power
Low Voltage Power: DC 48 V / PoE Class 3
Power Consumption Operational: 9.6 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 110
Angular Field of View (V, Max, Degree): 56
Max Focal Length: 10.2 millimetre
Optical Zoom: 3.2
Video Capture: 1280 x 720 @ 12/15 fps, 1920 x 1080 @ 12/15 fps, 2560 x 1440 @ 12/15 fps, 320 x 180 @ 12/15 fps, 3840 x 2160 @ 12/15 fps, 640 x 360 @ 12/15 fps
Recording Formats: JPEG
Digital Zoom: 19.2
Tilt: -30 to +85
Motion Detection: Yes
Panning Range (degree): -105 to +255
Min Focus Distance: 6.6 ft
Minimum Illumination: 0 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec / infrared LEDs on, 0.008 lux - B&W - F1.6 - 50 IRE - shutter 16/30 sec, 0.018 lux - color - F1.6 - 50 IRE - shutter 16/30 sec, 0.12 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec, 0.2 lux - color - F1.6 - 30 IRE - shutter 1/30 sec, 0.28 lux - color - F1.6 - 50 IRE - shutter 1/30 sec
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 2560 x 1440, 320 x 180, 3840 x 2160, 640 x 360
Max Frame Rate: 15 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/25 second (time unit)
Video Formats: H.264, H.265
Video Input: Color
Rated Current: 200 milliampere
Touchscreen: No
Supported Host Device Platform: Android
Max Video Resolution: 3840 x 2160
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dust resistant / water resistant / shock resistant / wind resistant / corrosion resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.1 inch
Width: 6.1 inch
Depth: 6.1 inch
Weight: 2.2 lbs
