Product Information

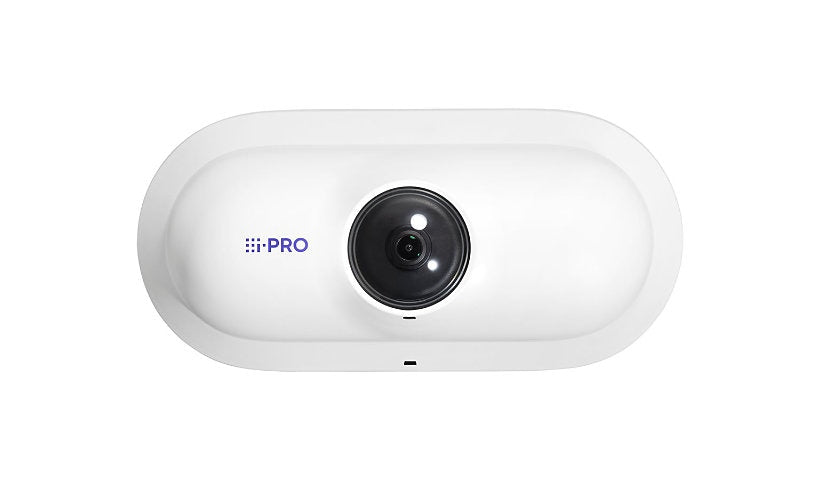

The i-PRO WV-RD5500-C is an outdoor camera with a built in FMCW radar sensor, recording 1080p at 30 fps across a 180 degree horizontal view with night vision. It has audio in and out, a microSD slot, FIPS 140-3 Level 3 encryption, and a housing rated against tampering, corrosion, wind, shock, water and dust. Runs on 54 V DC or PoE+ at 24 W. i-PRO white, TAA compliant.
Key Features
- FMCW radar sensor
- 1080p, 180 degrees
- Night vision
- FIPS 140-3 Level 3
- Rugged outdoor build
- 54 V or PoE+, TAA
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO
Model: WV-RD5500-C
Packaged Quantity: 1
Color: I-PRO White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-3 Level 3
Features: Frequency Modulated Continuous Wave (FMCW) radar sensor, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DHCPv6, DiffServ, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MLD, MQTT, NTCIP, NTP, RTP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out - 3.5 mm stereo jack, Audio line-in/microphone - 3.5 mm stereo jack, LAN/power - RJ-45
Power
Low Voltage Power: DC 54 V / PoE +
Power Consumption Operational: 24 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 180
Angular Field of View (V, Max, Degree): 90
Camera Type: Network surveillance camera
Recording Formats: JPEG
Motion Detection: Yes
Minimum Illumination: 0.0088 lux - color - F2.2 - 50 IRE - shutter 16/30 sec / AGC on, 0.14 lux - color - F2.2 - 50 IRE - shutter 1/30 sec / AGC on
Lens Aperture: F/2.2
Night Vision: Yes
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 320 x 180, 640 x 360
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/30 second (time unit)
Shutter Speed (Min): 16/30 second (time unit)
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, G.711, G.726
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dust resistant / water resistant / shock resistant / wind resistant / corrosion resistant / tamper resistant
Camera Mechanical Design: Fixed
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
