Product Information

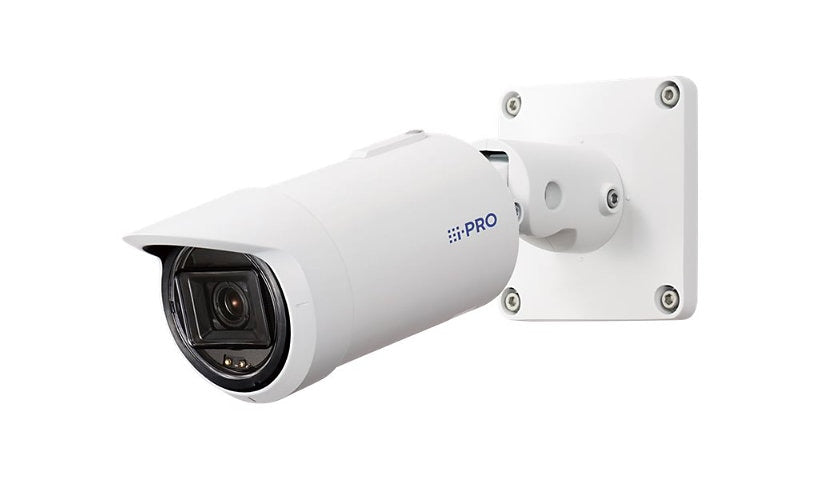

The i-PRO WV-S15500-V3LN is a 5 MP outdoor bullet recording up to 3072 x 2304 with a 2.9 to 9 mm autofocus lens (3.1x). Its AI engine detects people, vehicles and faces, with color night vision, IR up to 180 ft, two way audio, BNC video out, 3 alarm inputs and a FIPS 140-2 Level 3 element. 48 V DC or PoE at 12 W. IK10, NDAA, white.
Key Features
- 5 MP, up to 3072 x 2304
- 2.9 to 9 mm, 3.1x
- IR up to 180 ft
- AI engine
- Two way audio, 3 alarm in
- FIPS L3, IK10, NDAA
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-Pro
Model: WV-S15500-V3LN
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Adaptive Black Stretch (ABS), AI Analytics, AI face detection, AI non mask detection, AI occupancy detection, AI Person Detection, AI Sound Classification, AI vehicle detection, Audio Detection, Auto white balance, Autofocus, Backlight Compensation (BLC), Digital image rotation, Digital Noise Reduction, Fog compensation, Group of Pictures (GOP), Highlight Compensation (HLC), Iintelligent Video Motion Detection (i-VMD), Intelligent Auto (iA), Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Zone, Scene Change Detection, Smart Coding Technology, Super Dynamic technology, Unicast Streaming, Variable Image Quality on Specified area (VIQS), Video Motion Detection Technology, Video title overlay
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MLD, MQTT, NTP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line in - 3.5 mm jack, Audio line out - 3.5 mm jack, Composite video output - BNC, LAN/power - RJ-45
Power
Low Voltage Power: DC 48 V / PoE
Power Device Type: Power adapter / PoE
Power Consumption Operational: 12 watt
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
Technical Information
Angular Field of View (H, Max, Degree): 106
Angular Field of View (V, Max, Degree): 77
Focus Modes: Automatic
Infrared Distance: 180 ft
Infrared LEDs: Yes
Video Signals: Composite video
Max Focal Length: 9 millimetre
Optical Zoom: 3.1
Alarm Input Quantity: 3
Recording Formats: JPEG
Digital Zoom: 9.3
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 34
Angular Field of View (V, Min, Degree): 19
Min Focus Distance: 11.8 inch
Minimum Illumination: 0 lux - B&W - F1.3 - 50 IRE - shutter 1/30 sec / infrared LEDs on, 0.04 lux - B&W - F1.3 - 50 IRE - shutter 1/30 sec, 0.05 lux - color - F1.3 - 30 IRE - shutter 1/30 sec, 0.07 lux - color - F1.3 - 50 IRE - shutter 1/30 sec
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.3-2.5
Min Focal Length: 2.9 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 2560 x 1920, 3072 x 1728, 3072 x 2304, 320 x 180, 320 x 240, 400 x 300, 640 x 360, 800 x 600
Max Frame Rate: 30 images per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/25 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG, NTSC, PAL
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 3072 x 2304
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal-resistant
Form Factor: Bullet
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 5.2 inch
Width: 5.2 inch
Depth: 15.1 inch
Weight: 5.29 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
