Product Information

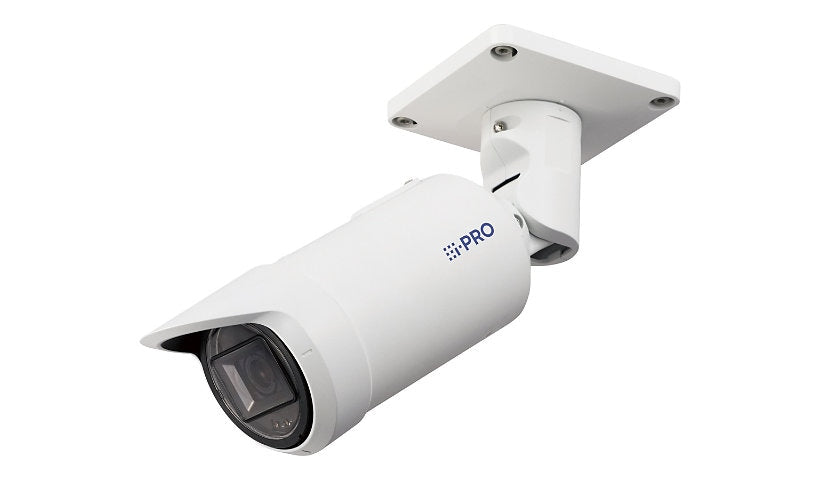

The i-PRO S-Series WV-S15700-V2LN is a 4K outdoor bullet with a 1/1.8 inch sensor and 4.3 to 8.6 mm autofocus lens (2x). Its AI processor runs up to three analytics apps, with color night vision, ClearSight coating, IR up to 230 ft, two way audio, BNC out, 3 alarm inputs and FIPS 140-2 Level 3, on 48 V DC or PoE at 12 W. NDAA, white.
Key Features
- 4K at 30 fps
- 4.3 to 8.6 mm, 2x
- IR up to 230 ft
- Up to 3 AI apps
- Two way audio, 3 alarm in
- FIPS L3, NDAA
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-Pro S Series
Model: WV-S15700-V2LN
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Adaptive Black Stretch (ABS), AI Analytics, AI face detection, AI non mask detection, AI occupancy detection, AI Person Detection, AI Privacy Guard, AI Sound Classification, AI vehicle detection, Ambarella CV22 CPU, Audio Detection, Auto white balance, Autofocus, Backlight Compensation (BLC), ClearSight Coating, Digital image rotation, Digital Noise Reduction, Fog compensation, Group of Pictures (GOP), Highlight Compensation (HLC), Iintelligent Video Motion Detection (i-VMD), Intelligent Auto (iA), Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Zone, Scene Change Detection, Smart Coding Technology, Super Dynamic technology, Unicast Streaming, Variable Image Quality on Specified area (VIQS), Video Motion Detection Technology, Video title overlay
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MLD, MQTT, NTP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line in - 3.5 mm jack, Audio line out - 3.5 mm jack, Composite video output - BNC, LAN/power - RJ-45
Power
Low Voltage Power: DC 48 V / PoE
Power Device Type: Power adapter / PoE
Power Consumption Operational: 12 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 104
Angular Field of View (V, Max, Degree): 56
Focus Modes: Automatic, Motorized
Infrared Distance: 230 ft
Infrared LEDs: Yes
Video Signals: Composite video
Max Focal Length: 8.6 millimetre
Optical Zoom: 2
Alarm Input Quantity: 3
Recording Formats: JPEG
Digital Zoom: 3
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 53
Angular Field of View (V, Min, Degree): 30
Min Focus Distance: 3.3 ft
Minimum Illumination: 0 lux - B&W - F1.5 - 50 IRE - shutter 1/30 sec / infrared LEDs on, 0.03 lux - B&W - F1.5 - 50 IRE - shutter 1/30 sec, 0.04 lux - color - F1.5 - 30 IRE - shutter 1/30 sec, 0.06 lux - color - F1.5 - 50 IRE - shutter 1/30 sec
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.5-2.4
Min Focal Length: 4.3 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 2560 x 1440, 320 x 180, 3840 x 2160, 640 x 360
Max Frame Rate: 30 images per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/25 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG, NTSC, PAL
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dust resistant / water resistant / shock resistant
Form Factor: Bullet
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 5.2 inch
Width: 5.2 inch
Depth: 15.1 inch
Weight: 5.29 lbs
