Product Information

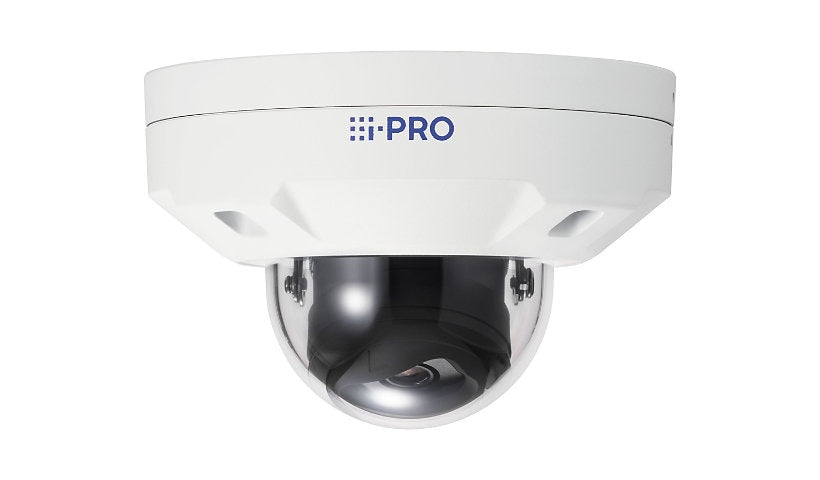

The i-PRO S-Series WV-S25500-F3L is an outdoor vandal resistant dome recording up to 3072 x 2304 through a 3.2 mm lens (95 degree view), listed as 5 MP. It has 132 dB Super Dynamic, an AI engine, IR up to 115 ft, a built in mic, audio in and out, 3 alarm inputs and a FIPS 140-2 Level 3 element, on 48 V DC or PoE. IK10, NDAA, -40 to 60 C.
Key Features
- 5 MP, up to 3072 x 2304
- 3.2 mm, 95 degree view
- IR up to 115 ft, AI engine
- 132 dB Super Dynamic
- FIPS 140-2 L3, IK10
- 48 V DC or PoE, NDAA
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO S-Series
Model: WV-S25500-F3L
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-2 Level 3
Features: 1/2.8 CMOS image sensor type, 11.3m recognize distance, 22.5m observe distance, 5.6m identify distance, 56.3m detect distance, 8 privacy zones, 802.1x authentication, Adaptive Black Stretch (ABS), AI face detection, AI non mask detection, AI occupancy detection, AI people detection, AI Privacy Guard, AI scene change detection, AI Sound Classification, AI vehicle detection, AI Video Motion Detection (AI-VMD), Alteration detection, Ambarella CV22 SoC, Anti-Condensation System, Audio Detection, AUX On / Off, Backlight Compensation (BLC), Brightness control, Brute force delay protection, Device Certificate GlobalSign pre-installed, Digest authentication, Digital Noise Reduction, DORI coverage, E-mail alerts, Fog compensation, Glass-break detection, Gunshot detection, Highlight Compensation (HLC), Host authentication, Image transmission log, Intelligent Auto (iA), Scene Change Detection (SCD), Signed firmware, Super Dynamic technology, System log, User authentication, Video Motion Detection (VMD), White balance
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DHCPv6, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line in - 3.5 mm jack, Audio line out - 3.5 mm jack, LAN/power - RJ-45
Power
Low Voltage Power: DC 48 V / PoE
Power Device Type: Power adapter / PoE
Power Consumption Operational: 10.6 watt
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
Technical Information
Angular Field of View (H, Max, Degree): 95
Angular Field of View (V, Max, Degree): 70
Infrared Distance: 115 ft
Infrared LEDs: Yes
Optical Zoom: 1
Alarm Input Quantity: 3
Recording Formats: JPEG
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 95
Angular Field of View (V, Min, Degree): 52
Min Focus Distance: 0.4 inch
Minimum Illumination: 0 lux - B&W - F1.5 - 50 IRE - shutter 1/30 sec, 0.006 lux - B&W - F1.5 - 50 IRE - shutter 16/30 sec, 0.011 lux - color - F1.5 - 50 IRE - shutter 16/30 sec, 0.1 lux - B&W - F1.5 - 50 IRE - shutter 1/30 sec, 0.12 lux - color - F1.5 - 30 IRE - shutter 1/30 sec, 0.17 lux - color - F1.5 - 50 IRE - shutter 1/30 sec
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/2.8
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 2560 x 1920, 3072 x 1728, 3072 x 2304, 320 x 180, 320 x 240, 400 x 300, 640 x 360, 800 x 600
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Built-in microphone
Rated Current: 220 milliampere
Touchscreen: No
Max Video Resolution: 3072 x 2304
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dust resistant / water resistant / shock resistant / wind resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 0.4 inch
Width: 6.1 inch
Depth: 6.1 inch
Weight: 2.43 lbs
