Product Information

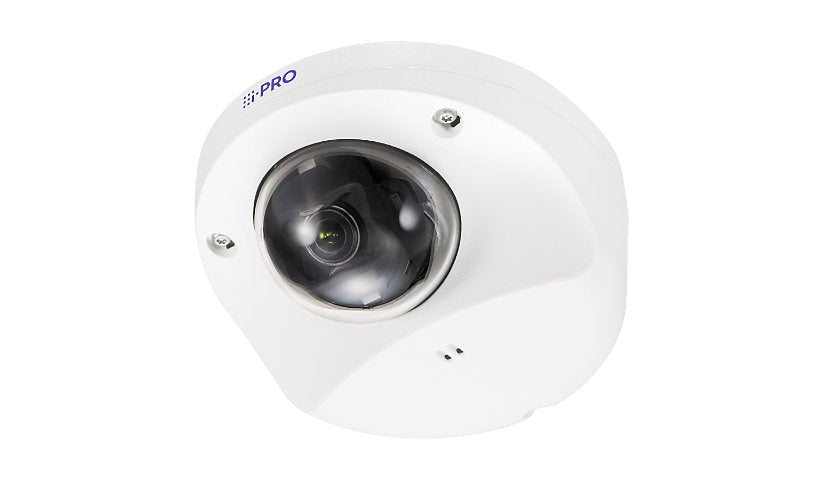

The i-PRO WV-S32302-F2L is an indoor 2 MP dome recording 1080p at up to 60 fps through a 2.4 mm lens with a 132 degree horizontal view. It has IR up to 69 ft, a built in mic and AI analytics, and runs on 48 V DC or PoE at 8.6 W. Shock and tamper resistant. White.
Key Features
- 2 MP, 1080p up to 60 fps
- 132 degree wide view
- IR up to 69 ft
- Built in mic, AI analytics
- 48 V DC or PoE, 8.6 W
- Shock resistant, indoor
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO
Model: WV-S32302-F2L
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 1.7m identify distance, 17.1m detect distance, 180° image rotation, 270° image rotation, 3.4m recognize distance, 6.8m observe distance, 90° image rotation, Adaptive Black Stretch (ABS), AI Analytics, Alteration detection, Ambarella CV25M CPU, Audio Detection, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Brute force delay protection, Device Certificate GlobalSign pre-installed, Digest authentication, Digital Noise Reduction, Fog compensation, Highlight Compensation (HLC), Intelligent Auto (iA), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Zone, Scene Change Detection (SCD), Smart P-picture control, Super Dynamic technology, Variable Image Quality on Specified area (VIQS)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DHCPv6, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN - RJ-45
Power
Low Voltage Power: DC 48 V / PoE
Power Consumption Operational: 8.6 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Infrared Distance: 69 ft
Infrared LEDs: Yes
Video Capture: 1920 x 1080 @ 60 fps, 2048 x 1536 @ 15 fps
Tilt: 0 to 90
Motion Detection: Yes
Panning Range (degree): -45 to +45
Angular Field of View (H, Min, Degree): 132
Angular Field of View (V, Min, Degree): 74
Min Focus Distance: 1.6 ft
Minimum Illumination: 0 lux - IR - F2.1 - 50 IRE - shutter 1/30 sec, 0.02 lux - B&W - F2.1 - 50 IRE - shutter 1/30 sec, 0.02 lux - color - F2.1 - 30 IRE - shutter 1/30 sec, 0.03 lux - color - F2.1 - 50 IRE - shutter 1/30 sec
Total Pixels: 2,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/2.1
Min Focal Length: 2.4 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2048 x 1536, 320 x 180, 640 x 360
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 16/30 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Built-in microphone
Rated Current: 180 milliampere
Touchscreen: No
Max Video Resolution: 2048 x 1536
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor
Protection: Shock resistant / tamper resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.1 inch
Width: 4.3 inch
Depth: 4.7 inch
Weight: 16.05 ounce
