Product Information

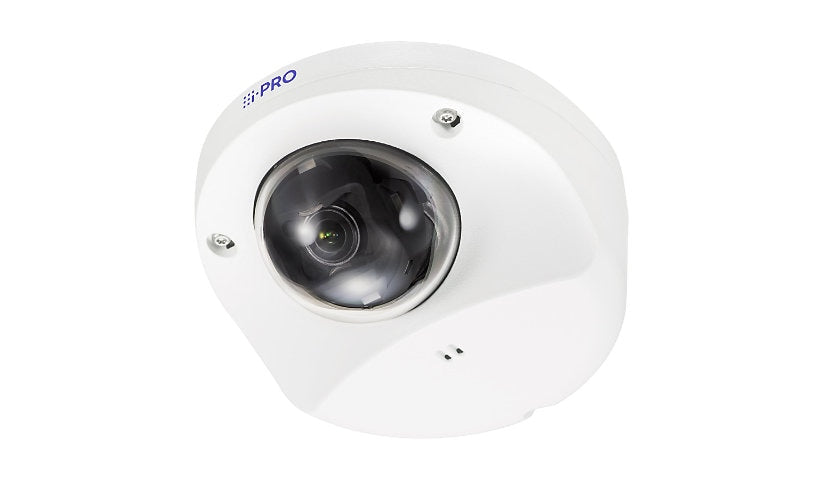

The i-PRO WV-S35402-F2L is a discreet 4 MP outdoor compact dome with a 2.4 mm lens giving a 121 degree wide view, recording 2560 x 1440 at up to 30 fps. It has built in IR up to 46 ft, a mic, one edge AI app and a FIPS 140-2 Level 3 secure element, and runs on 48 V DC or PoE at 8.6 W. IP66, IK10, NDAA compliant. White.
Key Features
- 4 MP, 121 degree view
- 2.4 mm wide lens
- IR up to 46 ft, mic
- One edge AI app
- FIPS 140-2 Level 3
- IP66, IK10, NDAA
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO
Model: WV-S35402-F2L
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-2 Level 3
Features: Adaptive Black Stretch (ABS), AI Analytics, Ambarella CV25M CPU, Audio Detection, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Digital Noise Reduction, Fog compensation, Highlight Compensation (HLC), ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Zone, Scene Change Detection (SCD)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DHCPv6, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45
Power
Low Voltage Power: DC 48 V / PoE
Power Consumption Operational: 8.6 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (V, Max, Degree): 91
Infrared Distance: 46 ft
Infrared LEDs: Yes
Video Capture: 2048 x 1536 @ 15 fps, 2560 x 1440 @ 25/30 fps
Recording Formats: JPEG
Tilt: 0 to 90
Motion Detection: Yes
Panning Range (degree): -45 to +45
Angular Field of View (H, Min, Degree): 121
Angular Field of View (V, Min, Degree): 68
Min Focus Distance: 2.3 ft
Minimum Illumination: 0 lux - IR - F2.1 - 50 IRE - shutter 1/30 sec, 0.0038 lux - B&W - F2.1 - 50 IRE - shutter 16/30 sec, 0.0063 lux - color - F2.1 - 50 IRE - shutter 16/30 sec, 0.06 lux - B&W - F2.1 - 50 IRE - shutter 1/30 sec, 0.07 lux - color - F2.1 - 30 IRE - shutter 1/30 sec, 0.1 lux - color - F2.1 - 50 IRE - shutter 1/30 sec
Total Pixels: 4,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/2.1
Min Focal Length: 2.4 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2048 x 1536, 2560 x 1440, 2688 x 1520, 320 x 180, 640 x 360
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 16/30 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Built-in microphone
Rated Current: 180 milliampere
Touchscreen: No
Max Video Resolution: 2688 x 1520
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dust resistant / water resistant / shock resistant / wind resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.1 inch
Width: 4.3 inch
Depth: 4.7 inch
Weight: 16.75 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
