Product Information

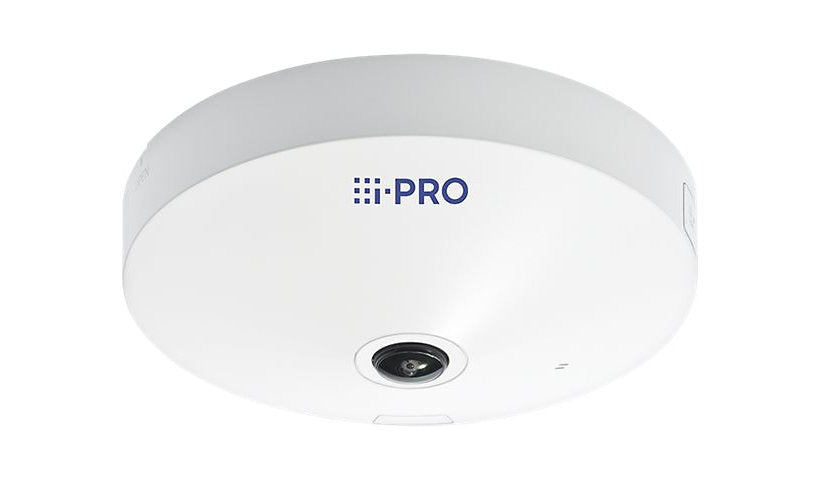

The i-PRO WV-S4156A is a 5 MP indoor 360 degree fisheye recording 2192 x 2192 at 30 fps through a 0.84 mm lens. It runs up to 3 edge AI apps, has a built in mic and FIPS 140-2 Level 3 secure element, and runs on 12 V DC or PoE at 6.2 W. Tamper proof, NDAA compliant, white.
Key Features
- 5 MP, 2192 x 2192
- 360 degree fisheye
- Up to 3 edge AI apps
- Built in mic
- FIPS L3, NDAA
- 12 V DC or PoE, indoor
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO
Model: WV-S4156A
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-2 Level 3
Features: 2.1m identify distance, 20.7m detect distance, 360° Rotation, 4.1m recognize distance, 5 megapixels image sensor, 8 privacy zones, 8.3m observe distance, 802.1x authentication, AI non mask detection, AI occupancy detection, AI Privacy Guard, AI scene change detection, AI Sound Classification, AI Video Motion Detection (AI-VMD), Alteration detection, Ambarella CV22 SoC, Audio Detection, Auto VIQS, AUX On / Off, Backlight Compensation (BLC), Brightness control, Brute force delay protection, Digest authentication, DORI coverage, E-mail alerts, Glass-break detection, Gunshot detection, Highlight Compensation (HLC), Host authentication, Image transmission log, Intelligent Auto (iA), Scene Change Detection (SCD), Signed firmware, Super Dynamic technology, System log, User authentication, Video Motion Detection (VMD)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DHCPv6, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45
Power
Low Voltage Power: DC 12 V / PoE
Power Consumption Operational: 6.2 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 186
Angular Field of View (V, Max, Degree): 186
Optical Zoom: 1
Recording Formats: JPEG
Digital Zoom: 4
Motion Detection: Yes
Min Focus Distance: 1 ft
Minimum Illumination: 0 lux - B&W - F2.4 - 50 IRE - shutter 16/30 sec, 0.01 lux - B&W - F2.4 - 50 IRE - shutter 1/30 sec, 0.01 lux - color - F2.4 - 50 IRE - shutter 16/30 sec, 0.11 lux - color - F2.4 - 30 IRE - shutter 1/30 sec, 0.15 lux - color - F2.4 - 50 IRE - shutter 1/30 sec
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/3"
Image Sensor Type: CMOS
Lens Aperture: F/2.4
Min Focal Length: 0.84 millimetre
Sensor Size (metric): 8.5 mm (1/3")
Digital Video Capture Resolution: 1280 x 1280, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2192 x 2192, 320 x 180, 320 x 320, 640 x 360, 640 x 640, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 16/30 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Built-in microphone
Touchscreen: No
Max Video Resolution: 2192 x 2192
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor
Protection: Tamper-proof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2 inch
Width: 5.9 inch
Weight: 13.76 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
