Product Information

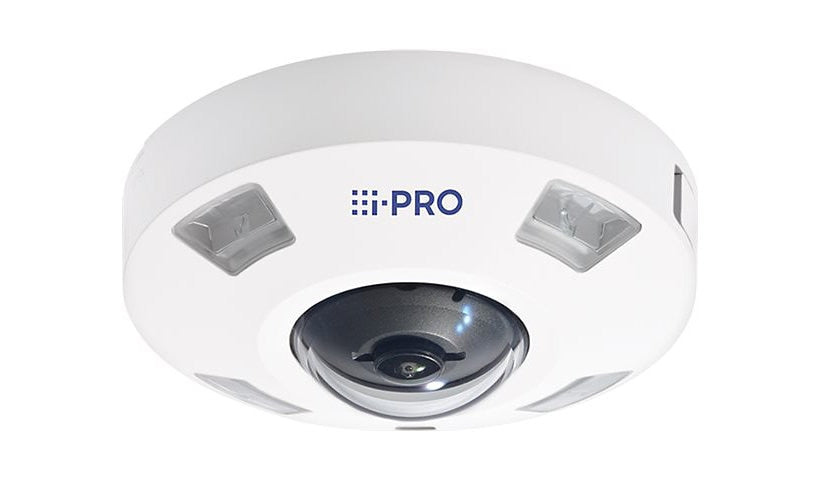

The i-PRO WV-S4556LA is a 5 MP outdoor 360 degree fisheye recording 2192 x 2192 at 30 fps for coverage without blind spots. It runs up to 3 edge AI apps, with IR up to 46 ft, a built in mic, audio in and out, 3 alarm inputs and a FIPS 140-2 Level 3 element, on 48 V DC or PoE at 12.5 W. IP66, IK10, NDAA. White.
Key Features
- 5 MP, 2192 x 2192
- 360 degree fisheye
- Up to 3 edge AI apps
- IR up to 46 ft, mic
- FIPS L3, IP66, IK10
- 48 V DC or PoE, NDAA
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO
Model: WV-S4556LA
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-2 Level 3
Features: 2.1m identify distance, 20.7m detect distance, 360° Rotation, 4.1m recognize distance, 5 megapixels image sensor, 8 privacy zones, 8.3m observe distance, 802.1x authentication, Adaptive Black Stretch (ABS), AI non mask detection, AI occupancy detection, AI Privacy Guard, AI scene change detection, AI Sound Classification, AI Video Motion Detection (AI-VMD), Alteration detection, Ambarella CV22 SoC, Anti-Condensation System, Audio Detection, Auto VIQS, AUX On / Off, Backlight Compensation (BLC), Brightness control, Brute force delay protection, Digest authentication, Digital Noise Reduction, DORI coverage, E-mail alerts, Fog compensation, Glass-break detection, Gunshot detection, Highlight Compensation (HLC), Host authentication, Image transmission log, Intelligent Auto (iA), Scene Change Detection (SCD), Signed firmware, Super Dynamic technology, System log, User authentication, Video Motion Detection (VMD)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DHCPv6, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line in - 3.5 mm jack, Audio line out - 3.5 mm jack, LAN/power - RJ-45
Power
Low Voltage Power: DC 48 V / PoE
Power Device Type: Power adapter / PoE
Power Consumption Operational: 12.5 watt
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
Technical Information
Angular Field of View (H, Max, Degree): 186
Angular Field of View (V, Max, Degree): 186
Infrared Distance: 46 ft
Infrared LEDs: Yes
Optical Zoom: 1
Alarm Input Quantity: 3
Recording Formats: JPEG
Digital Zoom: 4
Motion Detection: Yes
Min Focus Distance: 1 ft
Minimum Illumination: 0 lux - B&W - F2.4 - 50 IRE - shutter 1/30 sec, 0.0013 lux - B&W - F2.4 - 50 IRE - shutter 16/30 sec, 0.01 lux - color - F2.4 - 50 IRE - shutter 16/30 sec, 0.02 lux - B&W - F2.4 - 50 IRE - shutter 1/30 sec, 0.11 lux - color - F2.4 - 30 IRE - shutter 1/30 sec, 0.15 lux - color - F2.4 - 50 IRE - shutter 1/30 sec
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/3"
Image Sensor Type: CMOS
Lens Aperture: F/2.4
Min Focal Length: 0.84 millimetre
Sensor Size (metric): 8.5 mm (1/3")
Digital Video Capture Resolution: 1280 x 1280, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2192 x 2192, 320 x 180, 320 x 320, 640 x 360, 640 x 640, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 16/30 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Built-in microphone
Rated Current: 260 milliampere
Touchscreen: No
Max Video Resolution: 2192 x 2192
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dust resistant / water resistant / shock resistant / wind resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.4 inch
Width: 6.1 inch
Depth: 6.1 inch
Weight: 30.68 ounce
