Product Information

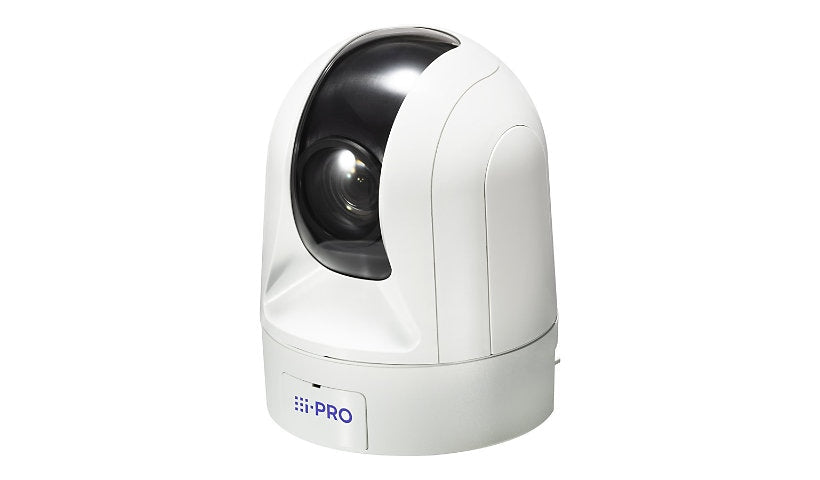

The i-PRO WV-S61301-Z2 is a 2 MP indoor PTZ dome with a 4 to 84.6 mm lens for 21x optical zoom, streaming 1080p at up to 60 fps. It comes with AI auto tracking plus AI person, vehicle and face detection, 256 presets, two way audio and 3 alarm inputs, and runs on 48 V DC or PoE at 11.6 W. White.
Key Features
- 2 MP indoor PTZ
- 21x, 4 to 84.6 mm
- AI auto tracking
- AI person, vehicle
- Two way audio
- 48 V or PoE, white
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-Pro
Model: WV-S61301-Z2
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 256 preset positions, AI Analytics, AI face detection, AI non mask detection, AI occupancy detection, AI Person Detection, AI Privacy Guard, AI Sound Classification, AI vehicle detection, Audio Detection, Auto pan function, Auto return, Auto tracking, Auto white balance, Autofocus, Backlight Compensation (BLC), Brightness control, Digital Noise Reduction, Fog compensation, Group of Pictures (GOP), Highlight Compensation (HLC), Iintelligent Video Motion Detection (i-VMD), Intelligent Auto (iA), Multicast Streaming, Notification picture to E-mail, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Patrol Mode, Privacy Zone, Scene Change Detection, Super Dynamic technology, Unicast Streaming, Variable Image Quality on Specified area (VIQS), Video Motion Detection Technology, Video title overlay
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MLD, MQTT, NTCIP, NTP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line in - 3.5 mm jack, Audio line out - 3.5 mm jack, LAN/power - RJ-45
Power
Low Voltage Power: DC 48 V / PoE
Power Device Type: Power supply
Power Consumption Operational: 11.6 watt
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
Technical Information
Angular Field of View (H, Max, Degree): 77
Angular Field of View (V, Max, Degree): 44
Focus Modes: Automatic
Max Focal Length: 84.6 millimetre
Optical Zoom: 21
Alarm Input Quantity: 3
Recording Formats: JPEG
Digital Zoom: 31
Max Panning Speed (degree/sec): 500
Max Tilting Speed (degree/sec): 350
Tilt: -30 to +90
Motion Detection: Yes
Panning Range (degree): 0 to 350
Angular Field of View (H, Min, Degree): 2.8
Angular Field of View (V, Min, Degree): 2.2
Min Focus Distance: 5 ft
Minimum Illumination: 0.0004 lux - B&W - F1.6 - 50 IRE - shutter 16/30 sec, 0.001 lux - color - F1.6 - 50 IRE - shutter 16/30 sec, 0.006 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec, 0.015 lux - color - F1.6 - 50 IRE - shutter 1/30 sec
Total Pixels: 2,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-4.5
Min Focal Length: 4 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 2048 x 1536, 320 x 180, 640 x 320
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/50 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 6.1 inch
Width: 4.6 inch
Depth: 4.6 inch
Weight: 2.65 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
