Product Information

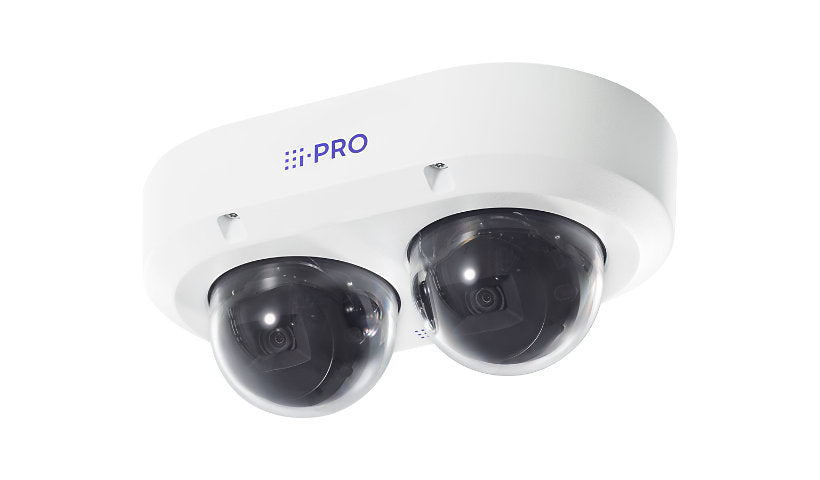

The i-PRO WV-S85402-V2L is an outdoor dual sensor multi directional camera with two 4 MP sensors, each 2688 x 1520 at 30 fps, and 2.9 to 7.3 mm motorized lenses, all on one IP address. It has an AI engine, IR up to 131 ft, two way audio and 3 alarm inputs, one VMS license and NDAA compliance, running on 54 V DC or PoE+ Class 4.
Key Features
- Two 4 MP sensors
- 2.9 to 7.3 mm motorized
- AI engine, one IP address
- IR up to 131 ft
- Two way audio, 3 alarm in
- 54 V DC or PoE+, NDAA
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO
Model: WV-S85402-V2L
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-2 Level 3
Features: 16:9 aspect ratio, 180° image rotation, 270° image rotation, 8 privacy zones, 90° image rotation, Adaptive Black Stretch (ABS), AI Analytics, AI face detection, AI non mask detection, AI occupancy detection, AI Sound Classification, AI vehicle detection, Alteration detection, Ambarella CV2 CPU, Audio alarm, Audio Detection, Auto ICR, Automatic Gain Control (AGC), Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Brute force delay protection, Constant Bit Rate (CBR), Corridor mode, Device Certificate GlobalSign pre-installed, Digest authentication, Digital Noise Reduction, DORI coverage, E-mail alerts, Fog compensation, Full duplex audio, Group of Pictures (GOP), Half duplex audio, Highlight Compensation (HLC), Host authentication, Image transmission log, Intelligent Auto (iA), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People Detection, Polycarbonate bubble, Scene Change Detection (SCD), Signed firmware, Smart P-picture control, Stainless steel housing, Super Dynamic technology, System log, Temish element, User authentication, Variable Bit Rate (VBR), Variable Image Quality on Specified area (VIQS), Wide Dynamic Range (WDR)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, DHCPv6, DNS, HTTP, HTTPS, ICMP, IPv6, LLDP, MLD, MQTT, NTP, RTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SSL, TCP/IP, TLS, UDP/IP
Ports: Audio line in - 3.5 mm stereo jack, Audio line out - 3.5 mm stereo jack, LAN - RJ-45
Power
Low Voltage Power: DC 54 V / PoE Plus Class 4
Power Consumption Operational: 22.2 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 100
Angular Field of View (V, Max, Degree): 56
Focus Modes: Motorized
Infrared Distance: 131 ft
Infrared LEDs: Yes
Max Focal Length: 7.3 millimetre
Optical Zoom: 2.5
Alarm Input Quantity: 3
Recording Formats: JPEG
Tilt: 10 to 105
Motion Detection: Yes
Panning Range (degree): -50 to +230
Angular Field of View (H, Min, Degree): 43
Angular Field of View (V, Min, Degree): 24
Min Focus Distance: 3.3 ft
Minimum Illumination: 0 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec / infrared LEDs on, 0.12 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec, 0.21 lux - color - F2.0 - 30 IRE - shutter 1/30 sec, 0.3 lux - color - F2.0 - 50 IRE - shutter 1/30 sec
Total Pixels: 2 x 4,000,000 pixels
Image Sensor Size: 2 x 1/2.7"
Image Sensor Type: CMOS
Lens Aperture: F/2.0
Min Focal Length: 2.9 millimetre
Sensor Size (metric): 2 x 9.4 mm (1/2.7")
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 2560 x 1440, 2688 x 1520, 320 x 180, 640 x 360
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 16/25 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Two-way audio capability
Rated Current: 410 milliampere
Touchscreen: No
Max Video Resolution: 2688 x 1520
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal / weatherproof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.1 inch
Width: 9.8 inch
Depth: 5.9 inch
Weight: 3.97 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
