Product Information

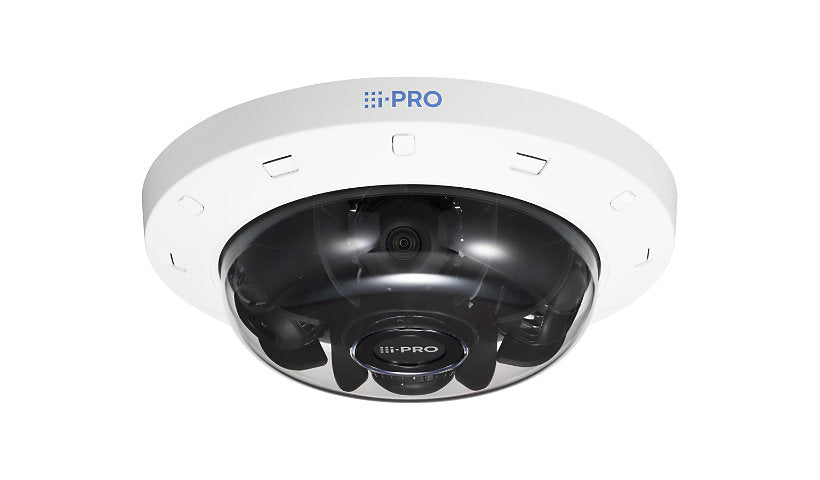

The i-PRO WV-S8544 is a 16 MP outdoor multi sensor dome with four 1/2.7 inch sensors (2688 x 1520 each) on motorized 2.9 to 7.3 mm lenses with remote zoom and focus, covering 360 degrees. It has AI person, vehicle and face detection, AI sound classification, color night vision, two way audio and 3 alarm inputs, on 54 V DC or PoE+ Class 4 at 17.3 W. White, vandal proof, NDAA compliant.
Key Features
- 16 MP, 4 sensors
- 360 degree coverage
- Remote zoom, focus
- AI analytics
- Two way audio
- PoE+, NDAA
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-Pro
Model: WV-S8544
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 360° field of view, Adaptive Black Stretch (ABS), AI Analytics, AI face detection, AI non mask detection, AI occupancy detection, AI Person Detection, AI Sound Classification, AI vehicle detection, Audio Detection, Auto white balance, Autofocus, Backlight Compensation (BLC), Digital image rotation, Digital Noise Reduction, Fog compensation, Group of Pictures (GOP), Highlight Compensation (HLC), Iintelligent Video Motion Detection (i-VMD), Intelligent Auto (iA), Multicast Streaming, Notification picture to E-mail, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Panorama Capture, Privacy Zone, Scene Change Detection, Super Dynamic technology, Unicast Streaming, Variable Image Quality on Specified area (VIQS), Video Motion Detection Technology, Video title overlay
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MLD, MQTT, NTP, RTP, RTSP, SMTP, SNMP 1, SNMP 2, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line in - 3.5 mm jack, Audio line out - 3.5 mm jack, LAN/power - RJ-45
Power
Low Voltage Power: DC 54 V / PoE Plus Class 4
Power Device Type: Power adapter / PoE
Power Consumption Operational: 17.3 watt
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
Technical Information
Angular Field of View (H, Max, Degree): 100
Angular Field of View (V, Max, Degree): 56
Focus Modes: Automatic
Max Focal Length: 7.3 millimetre
Optical Zoom: 2.5
Alarm Input Quantity: 3
Recording Formats: JPEG
Digital Zoom: 10.5
Tilt: 10 to 105
Motion Detection: Yes
Panning Range (degree): -125 to +125
Angular Field of View (H, Min, Degree): 43
Angular Field of View (V, Min, Degree): 24
Min Focus Distance: 3.3 ft
Minimum Illumination: 0.12 lux - B&W - F1.44 - 50 IRE - shutter 1/30 sec, 0.21 lux - color - F1.44 - 30 IRE - shutter 1/30 sec, 0.3 lux - color - F1.44 - 50 IRE - shutter 1/30 sec
Total Pixels: 16,000,000 pixels
Image Sensor Size: 4 x 1/2.7"
Image Sensor Type: CMOS
Lens Aperture: F/2.0-3.0
Min Focal Length: 2.9 millimetre
Sensor Size (metric): 9.4 mm (1/2.7")
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 2560 x 1440, 2688 x 1520, 320 x 180, 640 x 320
Max Frame Rate: 30 images per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 16/25 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 2688 x 1520
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dust resistant / water resistant / shock resistant / wind resistant / vandal-proof
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 3.5 inch
Width: 11.8 inch
Depth: 11.8 inch
Weight: 7.28 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
