Product Information

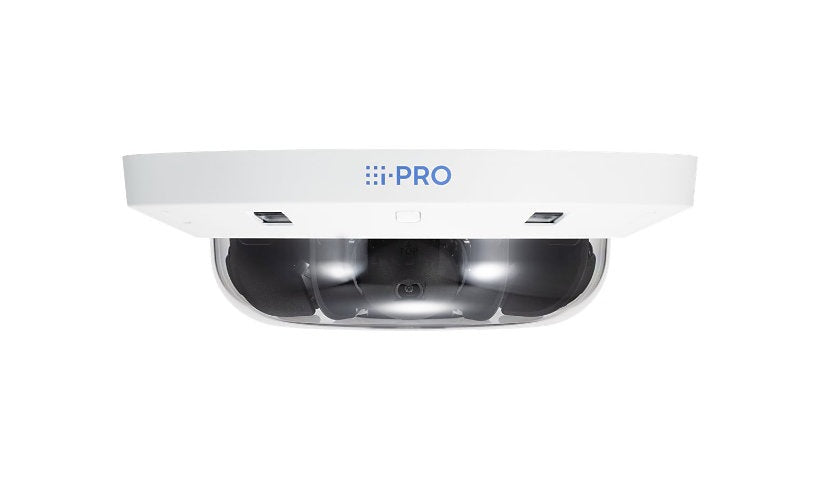

The i-PRO WV-S8564L is an outdoor multi sensor dome with four 1/2.8 inch sensors (25 MP total) and 3.1 mm F1.4 lenses for 360 degree coverage, recording up to 3328 x 1872 per view at 15 fps. It has AI analytics, IR up to 131 ft, two way audio, 3 alarm inputs and 1 output, and runs on PoE+ at 25.4 W. Vandal proof, white.
Key Features
- Four sensors, 25 MP total
- 360 degree coverage
- IR up to 131 ft
- AI analytics
- Two way audio, alarm I/O
- PoE+, vandal proof
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-Pro
Model: WV-S8564L
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 360° field of view, Adaptive Black Stretch (ABS), AI Analytics, AI face detection, AI non mask detection, AI occupancy detection, AI Person Detection, AI Sound Classification, AI vehicle detection, Ambarella CV2 CPU, Audio Detection, Auto white balance, Backlight Compensation (BLC), Brightness control, Digital image rotation, Digital Noise Reduction, Fog compensation, Group of Pictures (GOP), Highlight Compensation (HLC), Iintelligent Video Motion Detection (i-VMD), Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Panorama Capture, Privacy Zone, Scene Change Detection, Smart Coding Technology, Super Dynamic technology, Unicast Streaming, Variable Image Quality on Specified area (VIQS), Video Motion Detection Technology, Video title overlay
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MLD, MQTT, NTP, RTP, RTSP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line in - 3.5 mm jack, Audio line out - 3.5 mm jack, LAN/power - RJ-45
Power
Low Voltage Power: PoE Plus
Power Device Type: Power supply
Power Consumption Operational: 25.4 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 108
Angular Field of View (V, Max, Degree): 56
Infrared Distance: 131 ft
Infrared LEDs: Yes
Alarm Input Quantity: 3
Alarm Output Quantity: 1
Recording Formats: JPEG
Digital Zoom: 5
Tilt: 10 to 105
Motion Detection: Yes
Panning Range (degree): -125 to +125
Min Focus Distance: 10 ft
Minimum Illumination: 0 lux - B&W - F2.0 - shutter 1/30 sec / infrared LEDs on, 0.05 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec, 0.084 lux - color - F2.0 - 30 IRE - shutter 1/30 sec, 0.12 lux - color - F2.0 - 50 IRE - shutter 1/30 sec
Total Pixels: 25,000,000 pixels
Image Sensor Size: 4 x 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.4
Min Focal Length: 3.1 millimetre
Sensor Size (metric): 4 x 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 2560 x 1440, 320 x 180, 3328 x 1872, 640 x 320
Max Frame Rate: 15 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 16/25 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 3328 x 1872
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dust resistant / water resistant / shock resistant / wind resistant / vandal-proof
Form Factor: Dome
Camera Mechanical Design: Pan / tilt
Dimensions and Weight
Height: 3.5 inch
Width: 11.8 inch
Depth: 11.8 inch
Weight: 7.28 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
