Product Information

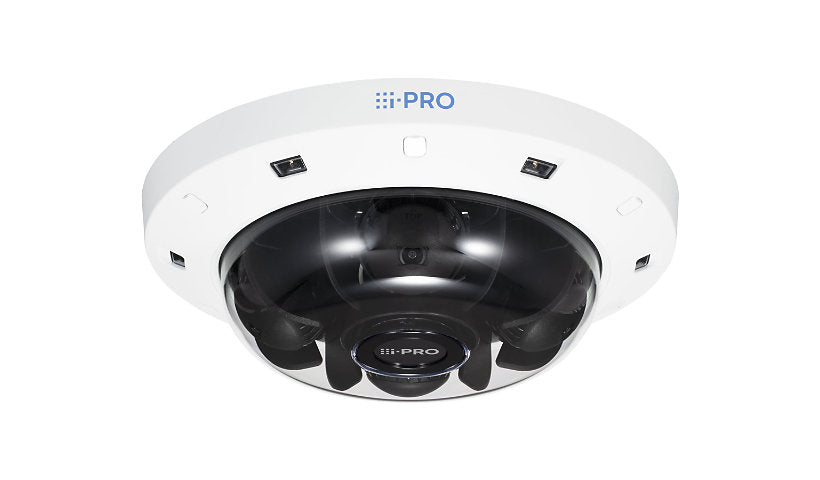

The i-PRO WV-S8574L is an outdoor four sensor camera with 33 MP total, up to 3840 x 2160 at 15 fps per sensor through 3.1 mm F1.4 lenses. It has built in 360 degree IR up to 131 ft, four preinstalled AI apps for people, vehicles and faces, a FIPS 140-2 Level 3 module, two way audio and 3 alarm inputs, and runs on 54 V DC or PoE+ Class 4.
Key Features
- Four sensors, 33 MP total
- Up to 4K at 15 fps each
- 360 degree IR, 131 ft
- Four AI apps preinstalled
- FIPS 140-2 Level 3
- 54 V DC or PoE+ Class 4
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-Pro
Model: WV-S8574L
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Adaptive Black Stretch (ABS), AI Analytics, AI face detection, AI non mask detection, AI occupancy detection, AI Person Detection, AI Sound Classification, AI vehicle detection, Audio Detection, Auto white balance, Backlight Compensation (BLC), Brightness control, Digital image rotation, Digital Noise Reduction, Fog compensation, Group of Pictures (GOP), Highlight Compensation (HLC), Iintelligent Video Motion Detection (i-VMD), Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Panorama Capture, Privacy Zone, Scene Change Detection, Smart Coding Technology, Super Dynamic technology, Unicast Streaming, Variable Image Quality on Specified area (VIQS), Video Motion Detection Technology, Video title overlay
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MLD, MQTT, NTP, RTP, RTSP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line in - 3.5 mm jack, Audio line out - 3.5 mm jack, LAN/power - RJ-45
Power
Low Voltage Power: DC 54 V / PoE Plus Class 4
Power Consumption Operational: 25.4 watt
Memory and Processor
Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
Technical Information
Angular Field of View (H, Max, Degree): 108
Angular Field of View (V, Max, Degree): 56
Infrared Distance: 131 ft
Infrared LEDs: Yes
Alarm Input Quantity: 3
Recording Formats: JPEG
Digital Zoom: 6
Tilt: 10 to 105
Motion Detection: Yes
Panning Range (degree): -125 to +125
Min Focus Distance: 10 ft
Minimum Illumination: 0 lux - B&W - F1.44 - 50 IRE - shutter 1/30 sec / infrared LEDs on, 0.05 lux - B&W - F1.44 - 50 IRE - shutter 1/30 sec, 0.084 lux - color - F1.44 - 30 IRE - shutter 1/30 sec, 0.12 lux - color - F1.44 - 50 IRE - shutter 1/30 sec
Total Pixels: 33,000,000 pixels
Image Sensor Size: 4 x 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.4
Min Focal Length: 3.1 millimetre
Sensor Size (metric): 4 x 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 2560 x 1440, 320 x 180, 3840 x 2160, 640 x 320
Max Frame Rate: 15 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 16/25 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dust resistant / water resistant / shock resistant / wind resistant / vandal-proof
Form Factor: Dome
Camera Mechanical Design: Pan / tilt
Dimensions and Weight
Height: 3.5 inch
Width: 11.8 inch
Depth: 11.8 inch
Weight: 7.28 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
