Product Information

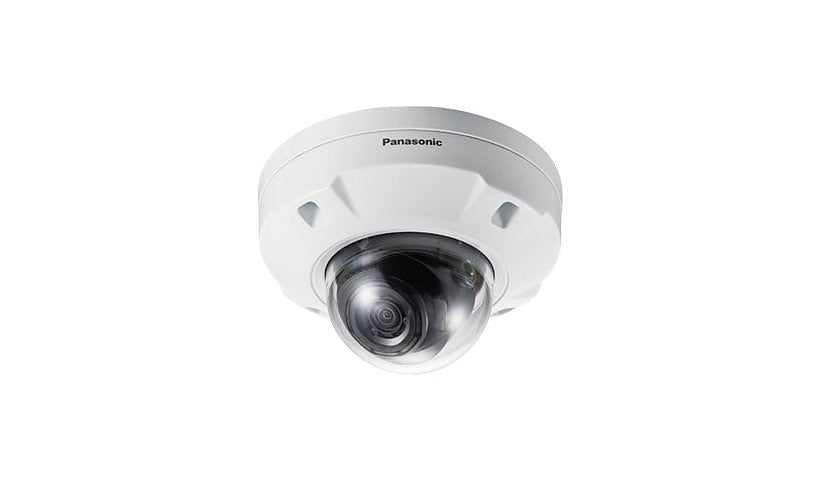

The i-PRO WV-U2542LA is an outdoor dome recording 2688 x 1520 at 30 fps (listed as 5 MP) with a 2.9 to 7.3 mm motorized lens (2.5x). It has Intelligent Auto, Super Dynamic, corridor mode, fog compensation and IR up to 66 ft, and runs on PoE at 7.2 W. Aluminum housing, white.
Key Features
- 2688 x 1520 at 30 fps
- 2.9 to 7.3 mm motorized
- IR up to 66 ft
- Intelligent Auto
- Corridor mode
- PoE, 7.2 W
Product Information
Brand: Panasonic
Manufacturer: i-PRO Americas
Product Line: Panasonic i-Pro
Model: WV-U2542LA
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Operating System Required: Android, Apple iOS
Features: Aluminum housing, Auto gain control, Auto VIQS, Auto white balance, Backlight Compensation (BLC), Brightness control, Constant Bit Rate (CBR), Corridor mode, Digital Noise Reduction, DORI coverage, Fog compensation, Group of Pictures (GOP), Highlight Compensation (HLC), Intelligent Auto (iA), Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Zone, Scene Change Detection, Smart Coding Technology, Super Dynamic technology, Unicast Streaming, Variable Bit Rate (VBR), Video Motion Detector (VMD)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, MLD, NTP, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45
Power
Low Voltage Power: PoE Class 0
Power Device Type: Power supply
Power Consumption Operational: 7.2 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 100
Angular Field of View (V, Max, Degree): 56
Focus Modes: Motorized
Infrared Distance: 66 ft
Infrared LEDs: Yes
Max Focal Length: 7.3 millimetre
Optical Zoom: 2.5
Recording Formats: JPEG
Digital Zoom: 4
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 43
Angular Field of View (V, Min, Degree): 24
Min Focus Distance: 3.3 ft
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.0075 lux - B&W - F2.0 - 50 IRE - shutter 16/30 sec / AGC on, 0.019 lux - color - F2.0 - 50 IRE - shutter 16/30 sec / AGC on, 0.12 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec / AGC on, 0.3 lux - color - F2.0 - 50 IRE - shutter 1/30 sec / AGC on
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.7"
Image Sensor Type: CMOS
Lens Aperture: F/2.0-3.0
Min Focal Length: 2.9 millimetre
Sensor Size (metric): 9.4 mm (1/2.7")
Digital Video Capture Resolution: 1920 x 1080, 2560 x 1440, 2688 x 1520, 320 x 180, 640 x 360
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 16/30 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265
Video Input: Color
Max Video Resolution: 2688 x 1520
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dust resistant / water resistant / shock resistant / corrosion resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.1 inch
Width: 6.1 inch
Depth: 6.1 inch
Weight: 2.2 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
