Product Information

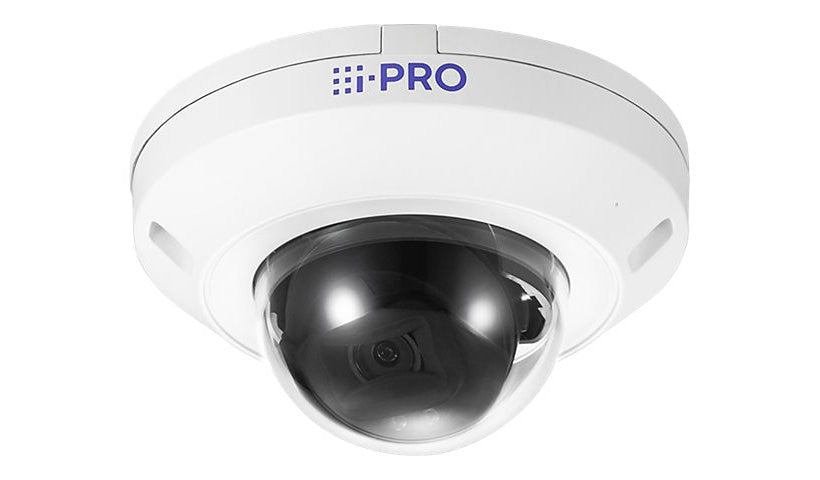

The i-PRO WV-U25550-F3L is a 5 MP outdoor dome recording 2592 x 1944 at 30 fps through a 3.2 mm lens with a 96 degree view. It has 120 dB dynamic range, AI video motion detection and privacy zones, and runs on 48 V DC or PoE at 9.6 W. Dust, water, shock and corrosion resistant, i-PRO white.
Key Features
- 5 MP, 2592 x 1944
- 3.2 mm, 96 degree view
- 120 dB dynamic range
- AI video motion detection
- Corrosion resistant
- 48 V DC or PoE
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO
Model: WV-U25550-F3L
Packaged Quantity: 1
Color: I-PRO White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 120 dB dynamic range, 18.4m observe distance, 180° image rotation, 270° image rotation, 46.1m detect distance, 8 privacy zones, 9.2 m recognize distance, 90° image rotation, AI Video Motion Detection (AI-VMD), Alarm notifications, Ambarella CV25M CPU, Auto ICR, Auto VIQS, Device Certificate GlobalSign pre-installed, Digital Noise Reduction, DORI coverage, E-mail alerts, Group of Pictures (GOP), Host authentication, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Scene Change Detection (SCD), Unicast Streaming, Up to 14 users, User authentication, Variable Bit Rate (VBR), Variable Image Quality on Specified area (VIQS), Video Motion Detection (VMD)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DHCPv6, DiffServ, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2, SNMP 3, TCP/IP, UDP/IP, UPnP
Ports: LAN/power - RJ-45
Power
Low Voltage Power: DC 48 V / PoE
Power Consumption Operational: 9.6 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 96
Angular Field of View (V, Max, Degree): 52
Max Focal Length: 3.2 millimetre
Video Capture: 1280 x 720 @ 30 fps, 1280 x 960 @ 30 fps, 1920 x 1080 @ 30 fps, 2560 x 1440 @ 30 fps, 2560 x 1920 @ 30 fps, 2592 x 1944 @ 30 fps, 320 x 180 @ 30 fps, 320 x 240 @ 30 fps, 400 x 300 @ 30 fps, 640 x 360 @ 30 fps, 640 x 480 @ 30 fps
Recording Formats: JPEG
Digital Zoom: 4
Tilt: -30 to +80
Motion Detection: Yes
Panning Range (degree): -175 to +175
Min Focus Distance: 3.3 ft
Minimum Illumination: 0 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec / infrared LEDs on, 0.004 lux - B&W - F2.0 - 50 IRE - shutter 16/30 sec, 0.01 lux - color - F2.0 - 50 IRE - shutter 16/30 sec, 0.07 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec, 0.11 lux - color - F2.0 - 30 IRE - shutter 1/30 sec, 0.16 lux - color - F2.0 - 50 IRE - shutter 1/30 sec
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/2.0
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1920, 2560 x1440, 2592 x 1944, 320 x 180, 320 x 240, 400 x 300, 640 x 360, 640 x 480
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/25 second (time unit)
Video Formats: H.264, H.265
Video Input: Color
Rated Current: 200 milliampere
Touchscreen: No
Supported Host Device Platform: Android
Max Video Resolution: 2592 x 1944
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dust resistant / water resistant / shock resistant / wind resistant / corrosion resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.4 inch
Width: 4.3 inch
Depth: 4.3 inch
Weight: 9.52 ounce
