Product Information

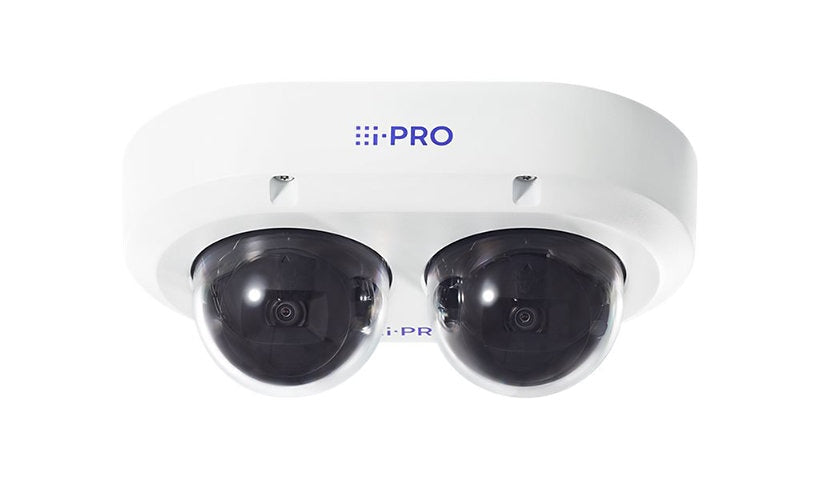

The i-PRO WV-U85402-V2L is an outdoor multi directional camera with two 4 MP sensors (2688 x 1520) and 2.9 to 7.3 mm motorized lenses on one IP address, with one VMS license. It has IR up to 131 ft, audio in and out, 3 alarm inputs and IP66/IP67 sealing, runs on 54 V DC or PoE+ Class 4 and works from -40 to 60 C. NDAA compliant.
Key Features
- Two 4 MP sensors
- 2.9 to 7.3 mm motorized
- IR up to 131 ft
- One IP address, VMS license
- IP66/IP67, -40 to 60 C
- 54 V DC or PoE+, NDAA
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO
Model: WV-U85402-V2L
Packaged Quantity: 1
Color: White
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: + / -90° YAW, 13.6m identify distance (tele), 136.5m detect distance (tele), 16:9 aspect ratio, 180° image rotation, 18m observe distance (wide), 27.3m recognize distance (tele), 270° image rotation, 4.5m identify distance (wide), 45.1m detect distance (wide), 54.6m observe distance (tele), 90° image rotation, 9m recognize distance (wide), Ambarella CV22 CPU, Audio Detection, Auto VIQS, Automatic Gain Control (AGC), Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Corridor mode, Digital Noise Reduction, Extra zoom 10.5x, Fog compensation, Group of Pictures (GOP), Highlight Compensation (HLC), Intelligent Auto (iA), ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Scene Change Detection (SCD), Super Dynamic technology, Temish element
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, DDNS, DHCP, DHCPv6, DNS, HTTP, HTTPS, ICMP, IGMP, IPv6, MLD, MQTT, NTP, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line in - 3.5 mm stereo jack, Audio line out - 3.5 mm stereo jack, LAN - RJ-45
Power
Low Voltage Power: DC 54 V / PoE Plus Class 4
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 100
Angular Field of View (V, Max, Degree): 56
Focus Modes: Motorized
Infrared Distance: 131 ft
Infrared LEDs: Yes
Max Focal Length: 7.3 millimetre
Optical Zoom: 2.5
Alarm Input Quantity: 3
Recording Formats: JPEG
Tilt: -10 to +105
Motion Detection: Yes
Panning Range (degree): -50 to +230
Angular Field of View (H, Min, Degree): 43
Angular Field of View (V, Min, Degree): 24
Min Focus Distance: 3.3 ft
Minimum Illumination: 0 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec, 0.0075 lux - B&W - F2.0 - 50 IRE - shutter 16/30 sec, 0.019 lux - color - F2.0 - 50 IRE - shutter 16/30 sec, 0.12 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec, 0.21 lux - color - F2.0 - 30 IRE - shutter 1/30 sec, 0.3 lux - color - F2.0 - 50 IRE - shutter 1/30 sec
Total Pixels: 8,000,000 pixels
Image Sensor Size: 2 x 1/2.7"
Image Sensor Type: CMOS
Lens Aperture: F/2.0-3.0
Min Focal Length: 2.9 millimetre
Sensor Size (metric): 2 x 9.4 mm (1/2.7")
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 2560 x1440, 2688 x 1520, 320 x 180, 640 x 360
Shutter Speed (Max): 1/10000 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Touchscreen: No
Max Video Resolution: 2688 x 1520
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dust resistant / water resistant
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 4.1 inch
Width: 9.8 inch
Depth: 5.9 inch
Weight: 3.97 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
