Product Information

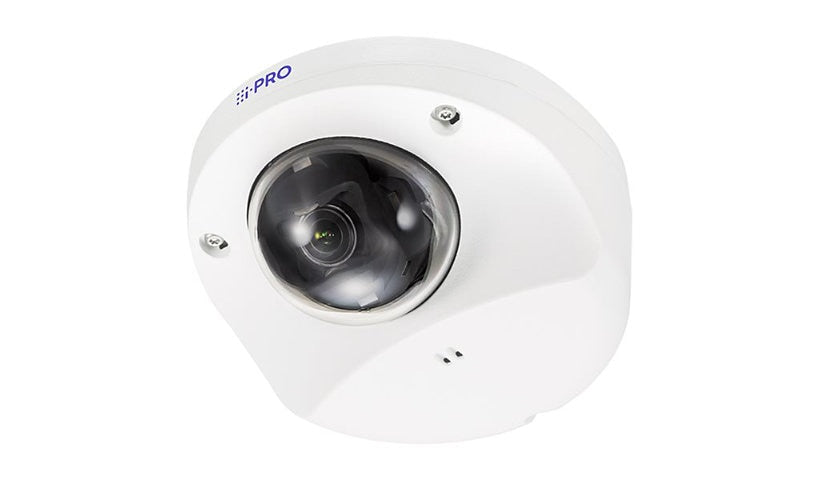

The i-PRO WV-X35402-F2LM is a 4 MP compact dome recording 2688 x 1520 at 30 fps through a 2.4 mm lens with a 121 degree view. It has 132 dB dynamic range, a built in mic, IR up to 46 ft and an M12 network connector, and runs on 48 V DC or PoE at 8.6 W from -40 to 60 C. Tamper, water and vandal resistant, i-PRO white.
Key Features
- 4 MP, 2688 x 1520
- 2.4 mm, 121 degree view
- 132 dB dynamic range
- IR up to 46 ft, mic
- M12 network connector
- 48 V DC or PoE
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO
Model: WV-X35402-F2LM
Packaged Quantity: 1
Color: I-PRO White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-2 Level 3
Operating System Required: Android, Apple iOS 8.0 or higher
Features: 11.6m observe distance, 132 dB dynamic range, 16:9 aspect ratio, 180° image rotation, 2.9m identify distance, 270° image rotation, 29m detect distance, 4:3 aspect ratio, 5.8m recognize distance, 8 privacy zones, 802.1x authentication, 90° image rotation, Adaptive Black Stretch (ABS), AI Analytics, AI Engine, AI face detection, AI non mask detection, AI occupancy detection, AI people detection, AI scene change detection, AI Sound Classification, AI Video Motion Detection (AI-VMD), Alteration detection, Aluminum housing, Ambarella CV25M CPU, Audio Detection, Auto ICR, Automatic Gain Control (AGC), Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Brute force delay protection, Constant Bit Rate (CBR), Device Certificate GlobalSign pre-installed, Digest authentication, Digital Noise Reduction, DORI coverage, E-mail alerts, Fog compensation, Glass-break detection, Group of Pictures (GOP), Gunshot detection, Highlight Compensation (HLC), Host authentication, Intelligent Auto (iA), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Scene Change Detection (SCD), Smart P-picture control, Super Dynamic technology, Up to 14 users, Up to 40 m/s wind resistance, Variable Bit Rate (VBR), Variable Image Quality on Specified area (VIQS), Video Motion Detector (VMD)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DHCPv6, DiffServ, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - M12
Power
Low Voltage Power: DC 48 V / PoE
Power Consumption Operational: 8.6 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 121
Angular Field of View (V, Max, Degree): 91
Infrared Distance: 46 ft
Infrared LEDs: Yes
Optical Zoom: 1
Video Capture: 1280 x 720 @ 25/30 fps, 1280 x 960 @ 12.5 fps, 1280 x 960 @ 15 fps, 1920 x 1080 @ 25/30 fps, 2048 x 1536 @ 12.5 fps, 2048 x 1536 @ 15 fps, 2560 x 1440 @ 25/30 fps, 2688 x 1520 @ 25/30 fps, 320 x 180 @ 25/30 fps, 640 x 360 @ 25/30 fps
Recording Formats: JPEG
Tilt: 0 to 90
Motion Detection: Yes
Panning Range (degree): -45 to +45
Min Focus Distance: 2.3 ft
Minimum Illumination: 0 lux - B&W - F2.1 - 50 IRE - shutter 1/30 sec / infrared LEDs on, 0.0038 lux - B&W - F2.1 - 50 IRE - shutter 1/30 sec, 0.0063 lux - color - F2.1 - 50 IRE - shutter 16/30 sec, 0.06 lux - B&W - F2.1 - 50 IRE - shutter 1/30 sec, 0.07 lux - color - F2.1 - 30 IRE - shutter 1/30 sec, 0.1 lux - color - F2.1 - 50 IRE - shutter 1/30 sec
Total Pixels: 4,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/2.1
Min Focal Length: 2.4 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2048 x 1536, 2560 x 1440, 2688 x 1520, 320 x 180, 640 x 360
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 16/30 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Built-in microphone
Touchscreen: No
Supported Host Device Platform: Android, iOS
Max Video Resolution: 2688 x 1520
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Protection: Tamper / dust / water / shock / wind / vandal resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.1 inch
Width: 4.3 inch
Depth: 4.7 inch
Weight: 16.75 ounce
