Product Information

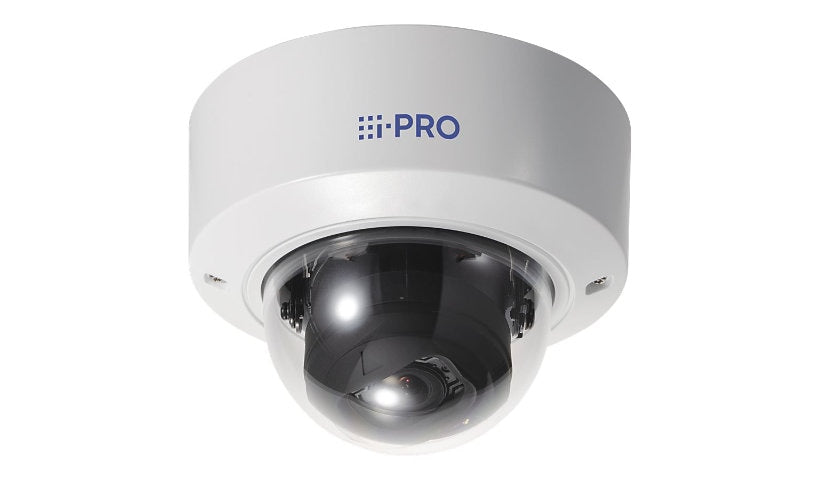

The i-PRO X-Series WV-X22500-V3L is a 5 MP indoor vandal resistant dome recording up to 3072 x 1728 at up to 60 fps with a 2.9 to 9 mm F1.3 motorized lens (3.1x). It has IR up to 230 ft, two way audio, 3 alarm inputs and 1 output, and runs on 12 V DC or PoE+. White.
Key Features
- 5 MP, up to 60 fps
- 2.9 to 9 mm F1.3
- IR up to 230 ft
- Two way audio
- 3 in / 1 out alarm
- 12 V DC or PoE+, indoor
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO X-Series
Model: WV-X22500-V3L
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Operating System Required: Android, Apple iOS 8.0 or higher
Features: 18.9m observe distance (wide), 180° image rotation, 20.7m identify distance (tele), 207.4m detect distance (tele), 270° image rotation, 4.7m identify distance (wide), 41.5m recognize distance (tele), 47.1m detect distance (wide), 8 privacy zones, 83m observe distance (tele), 9.4m recognize distance (wide), 90° image rotation, Adaptive Black Stretch (ABS), AI Analytics, AI face detection, AI non mask detection, AI occupancy detection, AI on-site learning, AI processing relay, AI Sound Classification, AI vehicle detection, Alteration detection, Ambarella CV25 SoC, Audio Detection, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Brute force delay protection, Constant Bit Rate (CBR), Device Certificate GlobalSign pre-installed, Digest authentication, Digital Noise Reduction, Edge AI, Fog compensation, Group of Pictures (GOP), Highlight Compensation (HLC), Image stabilizer, Intelligent Auto (iA), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People Detection, Scene Change Detection, Secure Boot, Signed firmware, Super Dynamic technology, Variable Bit Rate (VBR), Variable Image Quality on Specified area (VIQS)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCPv6, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line in - 3.5 mm stereo jack, Audio line out - 3.5 mm stereo jack, LAN - RJ-45
Power
Low Voltage Power: DC 12 V / PoE Plus
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 105
Focus Modes: Motorized
Infrared Distance: 230 ft
Infrared LEDs: Yes
Max Focal Length: 9 millimetre
Optical Zoom: 3.1
Alarm Input Quantity: 3
Alarm Output Quantity: 1
Recording Formats: JPEG
Tilt: -30 to +85
Motion Detection: Yes
Panning Range (degree): -240 to 120
Angular Field of View (H, Min, Degree): 33
Min Focus Distance: 1 ft
Minimum Illumination: 0 lux - IR - F1.3 - 50 IRE - shutter 1/30 sec, 0.02 lux - B&W - F1.3 - 50 IRE - shutter 1/30 sec, 0.03 lux - color - F1.3 - 30 IRE - shutter 1/30 sec, 0.04 lux - color - F1.3 - 50 IRE - shutter 1/30 sec
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.3
Min Focal Length: 2.9 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 2560 x 1920, 3072 x 1728, 3072 x 2304, 320 x 180, 400 x 300, 640 x 360, 800 x 600
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/60 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 3072 x 1728
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor
Protection: Vandal-resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4 inch
Width: 5.1 inch
Depth: 5.1 inch
Weight: 28.92 ounce
