Product Information

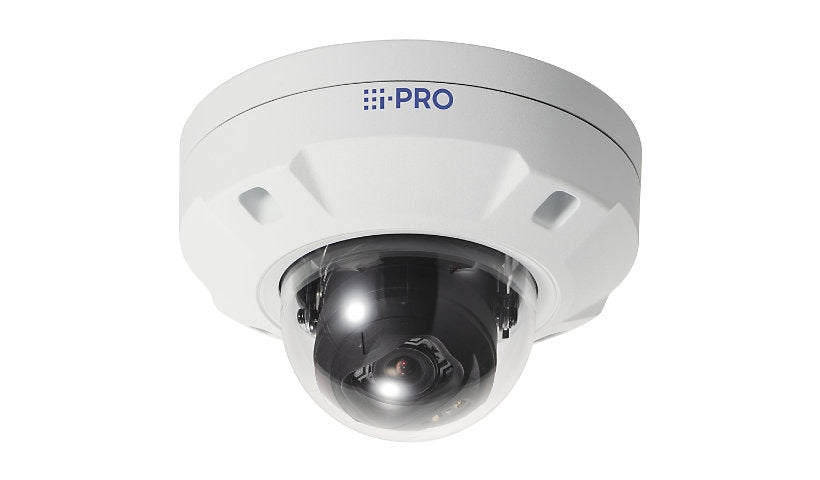

The i-PRO X-Series WV-X25500-V3LN is a 5 MP outdoor vandal resistant dome recording up to 3072 x 1728 with a 2.9 to 9 mm F1.3 motorized lens (3.1x). It has IR up to 230 ft, audio in and out, 3 alarm inputs and 1 output, and runs on 12 V DC or PoE+ from -40 to 55 C. White.
Key Features
- 5 MP, up to 3072 x 1728
- 2.9 to 9 mm F1.3, 3.1x
- IR up to 230 ft
- Vandal and weatherproof
- Audio in/out, alarm I/O
- 12 V DC or PoE+
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO X-Series
Model: WV-X25500-V3LN
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-2 Level 3
Operating System Required: Android, Apple iOS 8.0 or higher
Features: 16:9 aspect ratio, 180° image rotation, 19.5m observe distance (wide), 20.7m identify distance (tele), 207.4m detect distance (tele), 270° image rotation, 4:3 aspect ratio, 4.9m identify distance (wide), 41,5m recognize distance (tele), 48,9m detect distance (wide), 8 privacy zones, 83m observe distance (tele), 9.8m recognize distance (wide), 90° image rotation, Adaptive Black Stretch (ABS), AI Analytics, AI Sound Classification, Alteration detection, Aluminum housing, Ambarella CV52 CPU, Audio Detection, Automatic Gain Control (AGC), Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Brute force delay protection, Constant Bit Rate (CBR), Device Certificate GlobalSign pre-installed, Digest authentication, Digital Noise Reduction, E-mail alerts, Fog compensation, Full duplex audio, Half duplex audio, Highlight Compensation (HLC), ICR filter, Image stabilizer, Intelligent Auto (iA), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Polycarbonate bubble, Scene Change Detection (SCD), Secure Boot, Signed firmware, Super Dynamic technology, Variable Bit Rate (VBR), Variable Image Quality on Specified area (VIQS), Video Motion Detector (VMD)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCPv6, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line in - 3.5 mm stereo jack, Audio line out - 3.5 mm stereo jack, LAN - RJ-45
Power
Low Voltage Power: DC 12 V / PoE Plus
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 103
Angular Field of View (V, Max, Degree): 75
Focus Modes: Motorized
Infrared Distance: 230 ft
Infrared LEDs: Yes
Max Focal Length: 9 millimetre
Optical Zoom: 3.1
Alarm Input Quantity: 3
Alarm Output Quantity: 1
Recording Formats: JPEG
Tilt: -30 to +85
Motion Detection: Yes
Panning Range (degree): -194 to +166
Angular Field of View (H, Min, Degree): 33
Angular Field of View (V, Min, Degree): 19
Min Focus Distance: 1 ft
Minimum Illumination: 0 lux - IR - F1.3 - 50 IRE - shutter 1/30 sec, 0.02 lux - B&W - F1.3 - 50 IRE - shutter 1/30 sec, 0.03 lux - color - F1.3 - 30 IRE - shutter 1/30 sec, 0.04 lux - color - F1.3 - 50 IRE - shutter 1/30 sec
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.3
Min Focal Length: 2.9 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 2560 x 1920, 3072 x 1728, 3072 x 2304, 320 x 180, 400 x 300, 640 x 360, 800 x 600
Max Frame Rate: 60 frames per second
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Touchscreen: No
Max Video Resolution: 3072 x 1728
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal / weatherproof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.1 inch
Width: 6.1 inch
Depth: 6.1 inch
Weight: 2.43 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
