Product Information

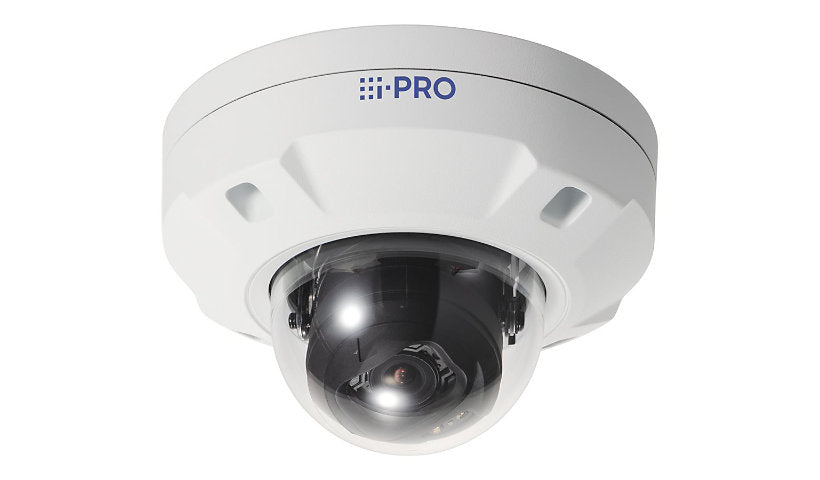

The i-PRO X-Series WV-X25700-V2LN is a 4K outdoor dome recording at up to 60 fps with a 1/1.8 inch sensor and 4.3 to 8.6 mm F1.5 motorized lens (2x). Its AI engine covers people and face detection with on site learning, plus IR up to 230 ft, audio in and out, 3 alarm inputs and 1 output, on 12 V DC or PoE+ Class 4. White.
Key Features
- 4K up to 60 fps
- 4.3 to 8.6 mm F1.5
- IR up to 230 ft
- AI engine
- Audio, alarm I/O
- 12 V DC or PoE+
Product Information
Brand: i-Pro
Manufacturer: i-PRO Americas
Product Line: i-PRO X-Series
Model: WV-X25700-V2LN
Packaged Quantity: 1
Color: White
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-2 Level 3
Operating System Required: Android, Apple iOS 8.0 or higher
Features: 180° image rotation, 270° image rotation, 8 privacy zones, 90° image rotation, Adaptive Black Stretch (ABS), AI Analytics, AI face detection, AI occupancy detection, AI on-site learning, AI people detection, AI Privacy Guard, AI processing relay, AI scene change detection, AI Sound Classification, AI vehicle detection, AI Video Motion Detection (AI-VMD), Aluminum housing, Ambarella CV52 CPU, Audio Detection, Automatic Gain Control (AGC), Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Digital Noise Reduction, DORI coverage, Fog compensation, Full duplex audio, Group of Pictures (GOP), Half duplex audio, Highlight Compensation (HLC), Intelligent Auto (iA), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Scene Change Detection (SCD), Smart Codec, Super Dynamic technology
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DDNS, DHCP, DHCPv6, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line in - 3.5 mm stereo jack, Audio line out - 3.5 mm stereo jack, LAN - RJ-45
Power
Low Voltage Power: DC 12 V / PoE Plus Class 4
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 101
Angular Field of View (V, Max, Degree): 55
Focus Modes: Motorized
Infrared Distance: 230 ft
Infrared LEDs: Yes
Max Focal Length: 8.6 millimetre
Optical Zoom: 2
Alarm Input Quantity: 3
Alarm Output Quantity: 1
Recording Formats: JPEG
Tilt: -30 to +85
Motion Detection: Yes
Panning Range (degree): -194 to +166
Angular Field of View (H, Min, Degree): 52
Angular Field of View (V, Min, Degree): 29
Min Focus Distance: 3.3 ft
Minimum Illumination: 0 lux - B&W - F1.5 - 50 IRE - shutter 1/30 sec, 0.002 lux - B&W - F1.5 - 50 IRE - shutter 16/30 sec, 0.004 lux - color - F1.5 - 50 IRE - shutter 16/30 sec, 0.03 lux - B&W - F1.5 - 50 IRE - shutter 1/30 sec, 0.04 lux - color - F1.5 - 30 IRE - shutter 1/30 sec, 0.06 lux - color - F1.5 - 50 IRE - shutter 1/30 sec
Video Modes: 1080p, 2160p, 720p
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.5
Min Focal Length: 4.3 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 2560 x 1440, 320 x 180, 3840 x 2160, 640 x 360
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/25 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dust resistant / water resistant / shock resistant / wind resistant / corrosion resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.1 inch
Width: 6.1 inch
Depth: 6.1 inch
Weight: 2.43 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
