Product Information

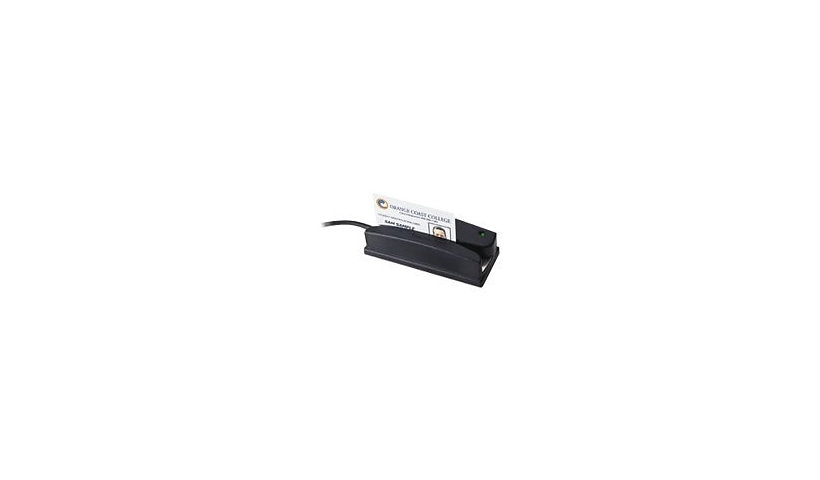

ID TECH's WCR3227-600S Omni is a heavy-duty slot reader that reads up to three magstripe tracks in either swipe direction and also reads infrared barcode cards, connecting via RS-232 DB-9.
Key Features:
- Magstripe (3 tracks) + infrared barcode
- Bi-directional swipe
- RS-232 DB-9 interface
- Error rate 1 in 100,000
Specifications:
- Brand: ID Tech
- Manufacturer Part Number: WCR3227-600S
- Interface Required Connections: 1× serial RS-232-9 pin D-Sub (DB-9)
- Audio Input Type: None
- Card Format: AAMVA, CA DVM
- Error Rate: 1 bit in 100, 000
- Form Factor (Input Device): External
- Head Duty Cycle (Passes): 1, 000, 000
- Max Operating Temperature: 131 degree Fahrenheit
- Min Operating Temperature: 32 degree Fahrenheit
- Minimum Bar Width: 6 milli-in
- Operating Humidity: 0-95%
- Read Speed: 3-60 ips (7.62-152.4 cm/sec)
- Recording Standard: ISO 7810/7811
- Input Adapter Type: Barcode / infrared card reader
- Host Interface: Serial RS-232
- Cables: 1× serial cable 6 ft
- Input Adapter Accessories Included: Power adapter
- Color: Black
- Listed Dimensions: Height 1.4 in, Width 2 in, Depth 5 in
- Weight: 1.54 lbs
- Warranty: 1-year limited warranty
