Product Information

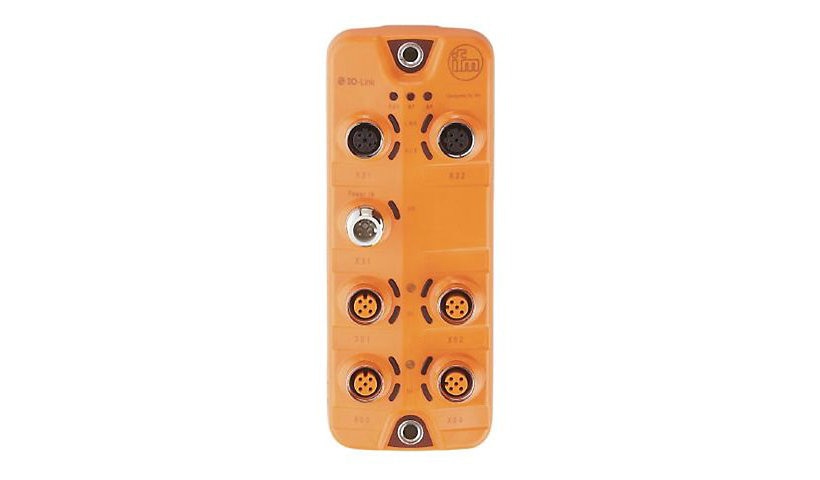

The ifm AL1100 digital I/O module provides reliable automation with a Profinet interface for easy integration into existing systems. It offers two Fast Ethernet ports and eight digital I/O with IO-Link v1.1 and short-circuit protection. Backed by a 5 year limited warranty.
Key Features
- IO-Link I/O module
- Profinet interface
- 2 x Fast Ethernet, 8 x digital I/O
- Short-circuit protection
- Orange
- 5 year limited warranty
Product Information
Brand: ifm
Manufacturer: eGain Corp
Product Line: ifm
Model: AL1100
Product Type: Digital input/output module
Technical Information
Features: PROFINET
Dimensions and Weight
Weight: 10.51 ounce
Material: PA
Color: Orange
Included Item
Packaged Quantity: 1
Additional Information
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, IO-Link v 1.1
Wired Protocol: IO-Link v 1.1/10/100 Ethernet
Interfaces: 2 x Fast Ethernet, 8 x digital I/O
Max Operating Temperature: 140 degree Fahrenheit
Min Operating Temperature: -13 degree Fahrenheit
Operating Humidity: 0 - 90%
Certifications and Listing
Compliant Standards: EN 60068-2-6:2008, EN 60068-2-64, EN 61000-6-2, EN 61000-6-4, IP65, IP66, IP67
Warranty
Limited Warranty: 5 Year
