Product Information

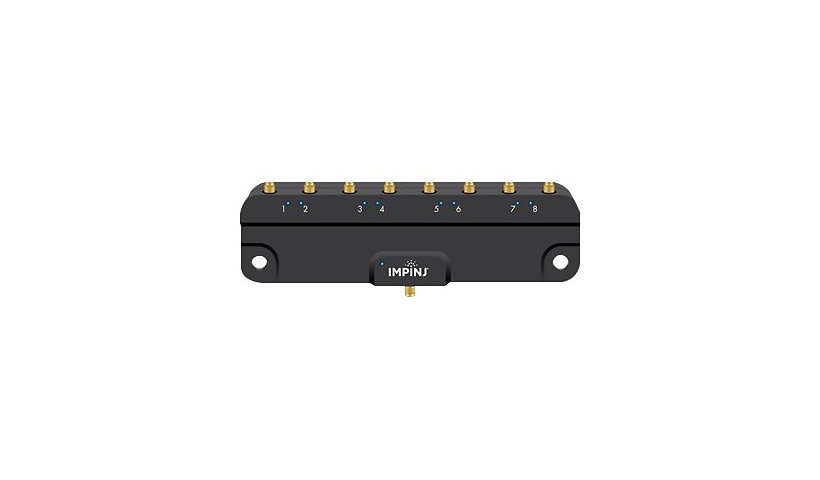

The Impinj IPJ-A6010-000 is an 8 port antenna hub for the Impinj R700 RAIN RFID reader, an antenna accessory rather than an antenna. It lets eight antennas share one reader port, for up to 32 antennas per reader, so tool tracking, smart shelves and other multi zone setups cost less and scale easily. It has SMA female connectors.
Key Features
- RFID antenna hub
- 8 antenna ports
- For Impinj R700 reader
- Up to 32 antennas per reader
- SMA female connectors
- Multi zone RFID
Product Information
Brand: Impinj
Manufacturer: IMPINJ
Product Line: Impinj
Model: R700
Product Type: Antenna hub
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: Black
Connectivity
Connector Provided: 1 x SMA female, 8 x SMA female
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Dimensions and Weight
Height: 0.8 inch
Width: 6.8 inch
Depth: 2.1 inch
Weight: 3.6 ounce
Certifications and Listing
Compliant Standards: FCC, IP50, RoHS
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
