Product Information

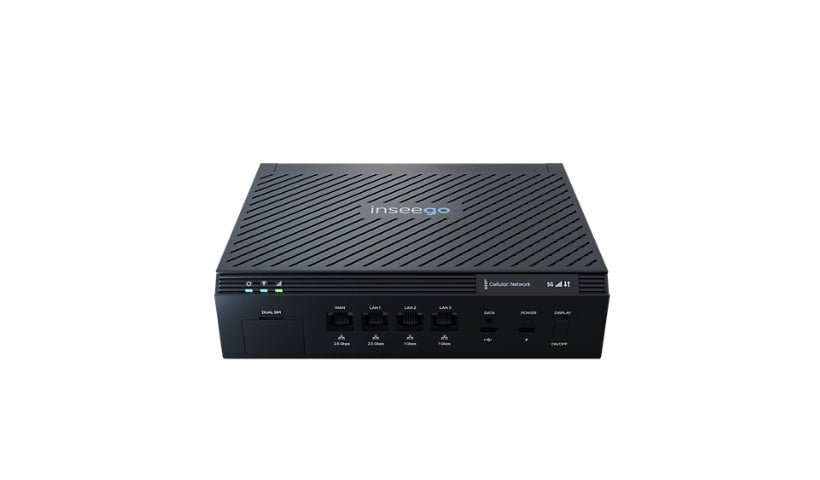

The Inseego Wavemaker FX4200 is a TAA compliant 5G and LTE router with Wi-Fi 7, a rechargeable Li-ion battery, a display and GPS. It offers two 2.5GbE WAN/LAN and two Gigabit LAN ports, USB-C with PD, IPsec VPN server and OpenVPN client, and out of band management. No service bundle is listed for this SKU.
Key Features
- 5G and LTE, 2 x Nano SIM, 4x4 MIMO
- Wi-Fi 7 dual band
- 2 x 2.5GbE WAN/LAN, 2 x GbE LAN
- USB-C and USB-C PD
- IPsec VPN server, OpenVPN client, firewall
- Battery, display, GPS, TAA compliant
Product Information
Product Type #2: Wireless cellular modem
Brand: Inseego
Manufacturer: Inseego
Product Line: Inseego Wavemaker
Model: FX4200
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 5G, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, LTE
Network Standard: IPv4, IPv6
Encryption: WPA2, WPA3
Wireless LAN: 802.11a/b/g/n/ac/ax/be, LTE
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: 5G, LTE
Antenna Form Factor: External and internal
Key Features: Firewall, VPN support
Features: 1GbE OOB management, 4x4 MIMO technology, AES encryption, APN management, Built-in rechargeable Li-ion battery, Cloud managed, DNS support, Firewall protection, IP passthrough, IPSec VPN server, MAC address filtering, NAT support, Network selection, OpenVPN client, Packet slicing programmable, Port filtering, Port forwarding, Reset button, Scalable, Secure Boot, Static IP address support, Test Internet speed, VLAN support, VPN passthrough, WAN port, Zero-touch configuration
Connectivity
Interface Provided: Antenna: 4 x SMA, LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45, USB: 1 x 24 pin USB-C, USB: 1 x 24 pin USB-C (PD), WAN / LAN: 2 x 2.5G Gigabit Ethernet - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Nano-SIM
Power
Device Type: External power adapter / battery
Memory and Processor
Processor Brand: Qualcomm
Processor Type: Dragonwing
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Built-in Devices: Battery, Display, GPS
Dimensions and Weight
Height: 2.1 inch
Width: 8.3 inch
Depth: 5.5 inch
Weight: 3.24 lbs
Certifications and Listing
Compliant Standards: FIPS 140-3, Plug and Play
TAA Compliant: Yes
Warranty
Service Activation: No
