Product Information

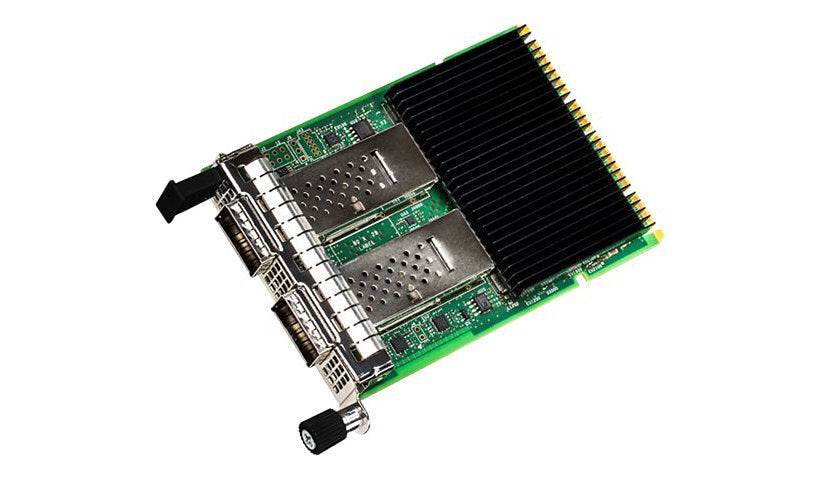

The Intel Ethernet Network Adapter E810-CQDA2 (E810CQDA2OCPV3) is an OCP NIC 3.0 card with two QSFP28 ports supporting 10, 25, 50 and 100 Gb Ethernet. It targets NFV, storage, HPC and AI and hybrid cloud work, with RoCE v2 RDMA, DSCP support and SNMP and RMON management. This is the retail packaged version.
Key Features
- 2 x 100GbE QSFP28 ports
- Intel E810 controller
- OCP 3.0 form factor
- RoCE v2 RDMA
- 10 to 100 GbE speeds
- Retail pack
Product Information
Package Type: Retail
Brand: Intel
Manufacturer: Intel
Product Line: Intel Ethernet Network Adapter
Model: E810-CQDA2
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet
Remote Management: RMON, SNMP
Features: DiffServ Code Point (DSCP) support, Extended Message-Signaled Interrupts (MSI-X), RDMA over Converged Ethernet (RoCE) v2, RDMA support
Connectivity
PCI Specification Revision: PCIe 3.0, PCIe 4.0
Port Quantity: 2
Interface Provided: 2 x 100Gb Ethernet - QSFP28
Network & Adapter Ports: QSFP28
Host Interface: Open Compute Project mezzanine (OCP) 3.0
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 90% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Height: 3 inch
Depth: 4.5 inch
Certifications and Listing
Compliant Standards #2: BSMI, Directive 2011/65/EU, FCC, KCC, RCM, RoHS, UL, VCCI
Compliant Standards: IEEE 802.1p, OCP 3.0
Compliant Standards: BSMI, Directive 2011/65/EU, FCC, KCC, RCM, RoHS, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
