Product Information

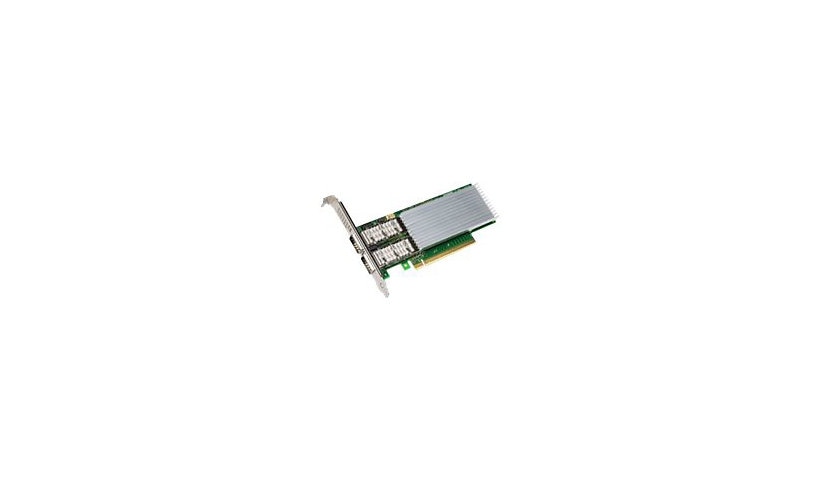

This Intel Ethernet Network Adapter E810-CQDA2 (E810CQDA2) is a low profile card with two QSFP28 ports on a PCIe 4.0 x16 interface, supporting 1, 10, 25, 50 and 100 Gb Ethernet. Built for NFV, storage, HPC and AI and hybrid cloud workloads, it offers Application Device Queues, Dynamic Device Personalization, RoCE v2 RDMA and DSCP, with SNMP and RMON management. A low profile bracket is included.
Key Features
- 2 x 100GbE QSFP28 ports
- Intel E810 controller
- PCIe 4.0 x16
- RoCE v2 RDMA
- ADQ and DDP
- Low profile bracket
Product Information
Brand: Intel
Manufacturer: Intel
Product Line: Intel Ethernet Network Adapter
Model: E810-CQDA2
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, Gigabit Ethernet
Remote Management: RMON, SNMP
Features: DiffServ Code Point (DSCP) support, Extended Message-Signaled Interrupts (MSI-X), RDMA over Converged Ethernet (RoCE) v2, RDMA support
Connectivity
PCI Specification Revision: PCIe 3.0, PCIe 4.0
Port Quantity: 2
Interface Provided: 2 x 100Gb Ethernet - QSFP28
Network & Adapter Ports: QSFP28
Host Interface: PCI Express 4.0 x16
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 90% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Dimensions and Weight
Height: 2.7 inch
Depth: 6.6 inch
Included Items
Included Accessories: Low-profile bracket
Certifications and Listing
Compliant Standards #2: IEEE 802.1p
Compliant Standards: BSMI, Directive 2011/65/EU, FCC, KCC, RCM, RoHS, UL, VCCI
Compliant Standards: IEEE 802.1p
