Product Information

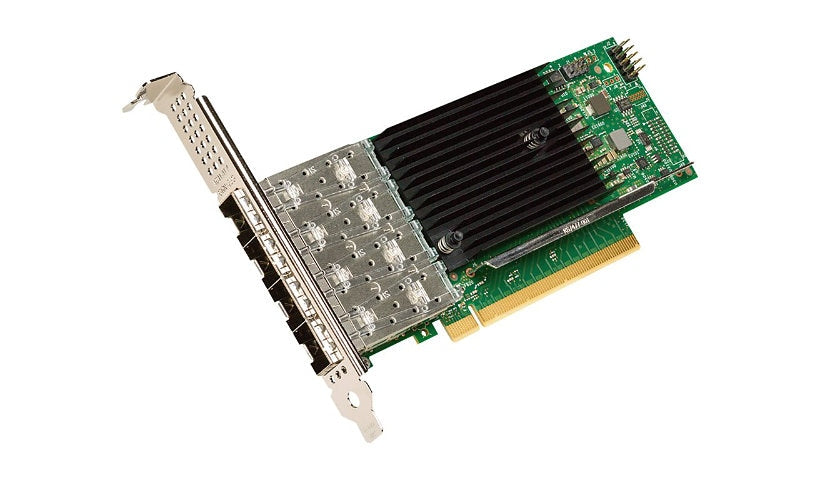

The Intel Ethernet Network Adapter E810-XXVDA4 (E810XXVDA4LG1P5) is a wired quad port SFP28 card, not a wireless adapter, on a low profile PCIe 4.0 x16 interface, with each port running at 1, 10 or 25 Gb Ethernet. It supports ADQ, DDP, DDIO, DPDK, Flow Director, PTP, RoCE v2 and iWARP RDMA and hardware root of trust, with iSCSI and NFS storage traffic and SNMP management.
Key Features
- Wired, not wireless
- 4 x 25GbE SFP28 ports
- PCIe 4.0 x16
- ADQ, DDP and PTP
- RoCE v2 and iWARP
- Low profile card
Product Information
Brand: Intel
Manufacturer: Intel
Product Line: Intel Ethernet Network Adapter
Model: E810-XXVDA4
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet
Network Standard: iSCSI, iWARP, NFS
Remote Management: RMON, SNMP
Features: ACL support, Advanced Packet Filtering, Application Device Queues (ADQ), Data Direct I/O Technology (DDIO), Data Plane Development Kit (DPDK), Dynamic Device Personalization (DDP), Flexible Port Partitioning (FPP), Hardware root of trust, Intel Flow Director, Intelligent offloads, MCTP over SMBus, On-chip QoS and Traffic Management, Precision Time Protocol (PTP), RDMA over Converged Ethernet (RoCE) v2, RDMA support, Single Root I/O Virtualization (SR-IOV), UEFI support, Virtual Machine Device Queues (VMDq), Virtualization Technology for Connectivity (VT-c), VLAN support, VLAN Tagging, VM Load Balancing (VMLB), Weighted Fair Queuing (WFQ), Zero Trust Network Access (ZTNA)
Connectivity
PCI Specification Revision: PCIe 4.0
Port Quantity: 4
Interface Provided: 4 x 10Gb Ethernet/25Gb Ethernet - SFP28
Network & Adapter Ports: 10/25 Gigabit SFP28
Host Interface: PCI Express 4.0 x16
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Status Indicators: Link/activity/speed
Dimensions and Weight
Width: 6.5 inch
Depth: 2.6 inch
Certifications and Listing
Compliant Standards #2: BSMI, C-Tick, Directive 2011/65/EU, Directive 2015/863/EU, FCC Class B certified, KCC, RoHS 2 (2011/65/EU), SIG, UL, VCCI
Compliant Standards: IEEE 1588v1, IEEE 1588v2, IEEE 802.1p, IEEE 802.3by
Compliant Standards: BSMI, C-Tick, Directive 2011/65/EU, Directive 2015/863/EU, FCC Class B certified, KCC, RoHS 2 (2011/65/EU), SIG, UL, VCCI
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
