Product Information

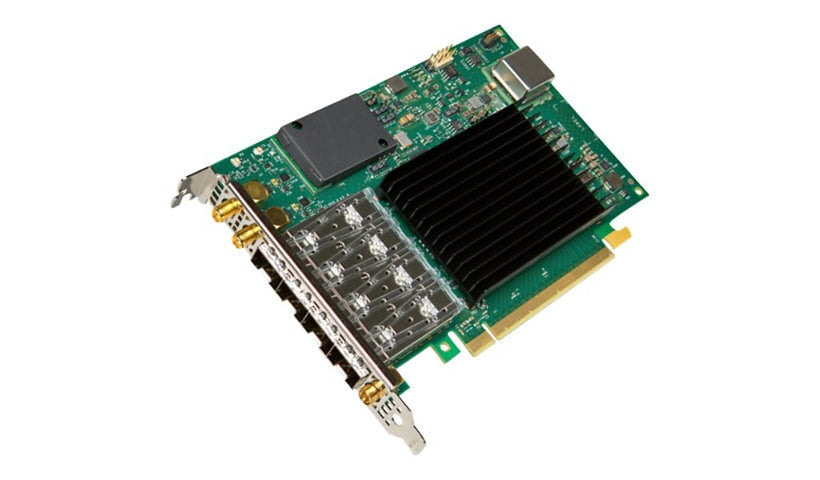

The Intel Ethernet Network Adapter E810-XXVDA4T (E810XXVDA4TGG1) is a wired quad port SFP28 card, not a wireless adapter, on a low profile PCIe 4.0 x16 interface with each port running at 1, 10 or 25 Gb Ethernet. It adds precision timing features with an onboard oscillator and PTP, plus ADQ, DDP, DDIO, DPDK, RoCE v2 and iWARP RDMA and hardware root of trust. This is the OEM packaged version.
Key Features
- Wired, not wireless
- 4 x 25GbE SFP28 ports
- PTP timing with oscillator
- PCIe 4.0 x16
- RoCE v2 and iWARP
- OEM pack, low profile
Product Information
Package Type: OEM
Brand: Intel
Manufacturer: Intel
Product Line: Intel Ethernet Network Adapter
Model: E810-XXVDA4T
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet, Gigabit Ethernet
Network Standard: iSCSI, iWARP, NFS
Features: ACL support, Advanced Packet Filtering, Application Device Queues (ADQ), Data Direct I/O Technology (DDIO), Data Plane Development Kit (DPDK), Dynamic Device Personalization (DDP), Flexible Port Partitioning (FPP), Hardware root of trust, Intel Flow Director, Intelligent offloads, On-chip QoS and Traffic Management, Oscillator functions, Precision Time Protocol (PTP), RDMA over Converged Ethernet (RoCE) v2, RDMA support, Single Root I/O Virtualization (SR-IOV), Synchronous Ethernet (SyncE), UEFI support, Virtual Machine Device Queues (VMDq), Virtualization Technology for Connectivity (VT-c), VLAN support, VLAN Tagging, VM Load Balancing (VMLB), Weighted Fair Queuing (WFQ)
Connectivity
PCI Specification Revision: PCIe 4.0
Port Quantity: 4
Interface Provided: 4 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP28
Network & Adapter Ports: 10/25 Gigabit SFP28
Host Interface: PCI Express 4.0 x16
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 90% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Dimensions and Weight
Width: 6.6 inch
Depth: 4.4 inch
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
