Product Information

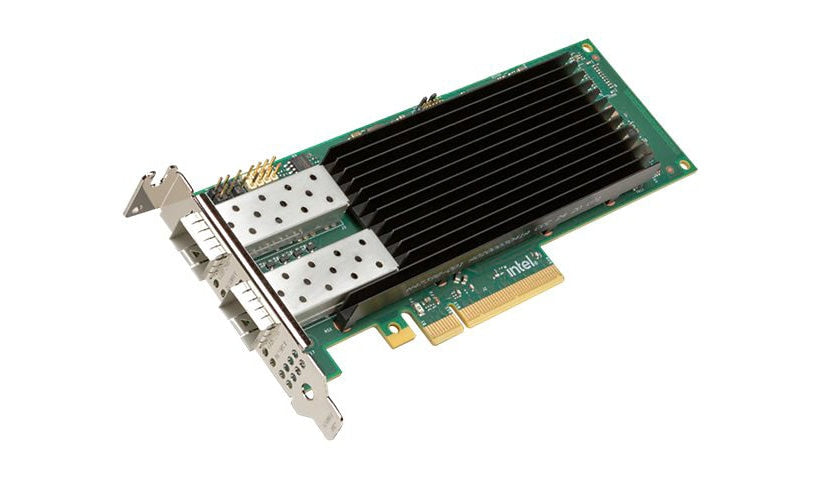

Intel's E830-XXVDA2 Ethernet Network Adapter is a wired dual port SFP28 card, not a wireless adapter, on a low profile PCIe 4.0 x8 interface with each port running at 10 or 25 Gb Ethernet. It supports DPDK, OVS offload, PTP timing, RDMA with iWARP, root of trust, secure boot and secure firmware updates, with CNSA and FIPS 140 security, and operates from 0 to 65 °C.
Key Features
- Wired, not wireless
- 2 x 10/25GbE SFP28 ports
- PCIe 4.0 x8
- PTP and iWARP RDMA
- Root of trust, FIPS 140
- Low profile card
Product Information
Brand: Intel
Manufacturer: Intel
Product Line: Intel Ethernet Network Adapter
Model: E830-XXVDA2
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet
Network Standard: DDP, iWARP, MCTP, RBT
Encryption: CNSA, FIPS, FIPS 140
Features: Data Plane Development Kit (DPDK), DTMF support, LED status indicators, Open Virtual Switch (OVS), Precision Time Protocol (PTP), RDMA support, Root of Trust (RoT), Secure Boot, Secure firmware update
Connectivity
PCI Specification Revision: PCIe 3.0, PCIe 4.0
Port Quantity: 2
Interface Provided: 2 x 10Gb Ethernet/25Gb Ethernet - SFP28
Network & Adapter Ports: 10/25 Gigabit SFP28
Host Interface: PCI Express 4.0 x8
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Status Indicators: Activity
Dimensions and Weight
Height: 2.7 inch
Depth: 6.6 inch
Certifications and Listing
Compliant Standards: BMSI, BSMI, CMIM, cURus, Directive 2011/65/EU, FCC, FIPS, FIPS 140, ICES, IEEE 1588, KCC, MCTP, RCM, RoHS, UKCA, VCCI
ENERGY STAR Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - limited lifetime warranty
Service Activation: No
