Product Information

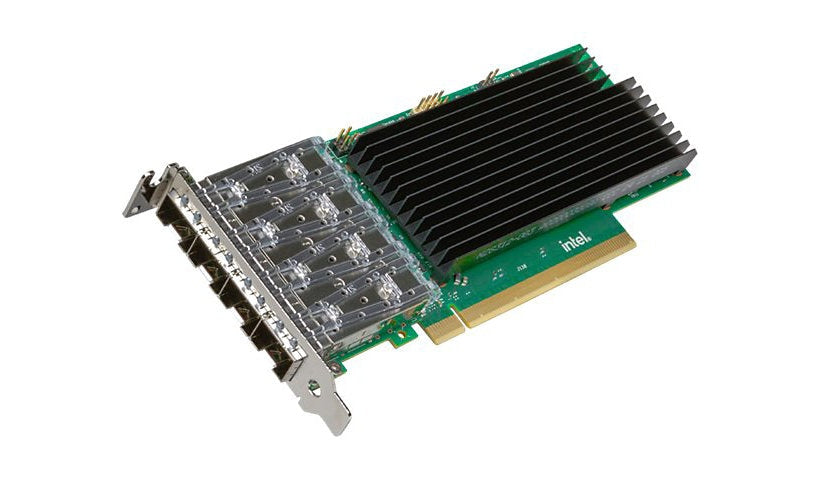

Intel's E835-XXVDA4 Ethernet Network Adapter has four SFP28 ports that run at 10 or 25 Gb Ethernet, on a PCIe 4.0 x16 interface. It supports RDMA with iWARP and RoCE, DDIO, DPDK, Dynamic Device Personalization, Flexible Port Partitioning, OVS offload, SR-IOV and on chip QoS, with PLDM and NC-SI over MCTP management and CNSA and FIPS 140-3 security. Full height and low profile brackets are included.
Key Features
- 4 x 10/25GbE SFP28 ports
- Intel E835 controller
- PCIe 4.0 x16
- iWARP and RoCE RDMA
- FIPS 140-3 and CNSA
- Both brackets included
Product Information
Brand: Intel
Manufacturer: Intel
Product Line: Intel Ethernet Network Adapter
Model: E835-XXVDA4
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Black, Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet
Network Standard: DDP, iSCSI, iWARP, MCTP
Remote Management: PLDM
Encryption: CNSA, FIPS 140-3
Features: Data Direct I/O Technology (DDIO), Data Plane Development Kit (DPDK), Distributed Management Task Force (DTMF), Dynamic Device Personalization (DDP), Flexible Port Partitioning (FPP), Intelligent offloads, Low power consumption, MCTP over PCIe VDM, MCTP over SMBus, NC-SI over MCTP, On-chip QoS and Traffic Management, Open Virtual Switch (OVS), PCI-SIG SR-IOV-ready, PLDM over MCTP, RDMA over Converged Ethernet (RoCE) v2, RDMA support, Root of Trust (RoT), Secure Boot, Security Protocols and Data Models (SPDM), Signed firmware, Storage over Ethernet, Virtual Machine Device Queues (VMDq), Virtualization Technology for Connectivity (VT-c)
Connectivity
PCI Specification Revision: PCIe 4.0
Port Quantity: 4
Interface Provided: 4 x 10Gb Ethernet/25Gb Ethernet - SFP28
Network & Adapter Ports: 10/25 Gigabit SFP28
Host Interface: PCI Express 4.0 x16
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Physical Characteristics
Form Factor: Plug-In Card
Status Indicators: Active, Link/speed
Included Items
Included Accessories: Full-height bracket, Low profile bracket
Certifications and Listing
Compliant Standards #2: BSMI, CMIM, cURus, Directive 2011/65/EU, FCC, ICES, KCC, NIST 800-193, RCM, RoHS, UKCA, VCCI
Compliant Standards: IEEE 1588v2
Compliant Standards: BSMI, CMIM, cURus, Directive 2011/65/EU, FCC, ICES, KCC, NIST 800-193, RCM, RoHS, UKCA, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - 90 day money back guarantee - limited lifetime warranty
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
