Product Information

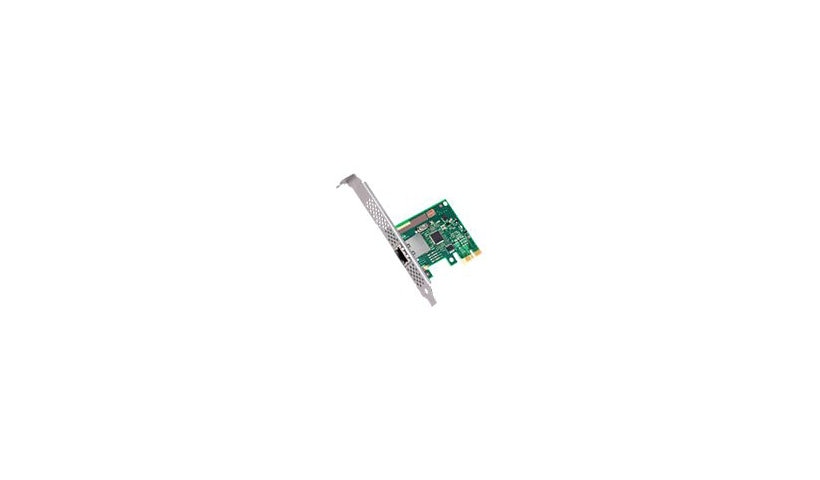

The Intel Ethernet Server Adapter I210-T1 is a single port Gigabit RJ-45 card on a PCIe 2.1 x1 interface, built on the Intel I210 controller. It runs at 10, 100 or 1000 Mbps, supports Audio Video Bridging, Energy Efficient Ethernet, DMA coalescing, flow control and jumbo frames, and draws only about 0.81 W. It is low profile and includes full height and low profile brackets.
Key Features
- 1 x Gigabit RJ-45 port
- Intel I210 controller
- PCIe 2.1 x1
- AVB and EEE support
- About 0.81 W power draw
- Low profile, both brackets
Product Information
Brand: Intel
Manufacturer: Intel
Product Line: Intel Ethernet Server Adapter
Model: I210-T1
Product Type: Network adapter
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: TCP/IP, UDP/IP
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Data Transfer Rate: 1 GBps
Features: Auto-negotiation, Flow control, Jumbo Frames support
Connectivity
PCI Specification Revision: PCIe 2.1
Interface Provided: 1 x 1000Base-T - RJ-45
Network & Adapter Ports: 10/100/1000
Compatible Slots Required: 1 x PCI Express 2.1 x1 - low-profile
Host Interface: PCI Express 2.1 x1
Power
Power Consumption Operational: 0.81 watt
Memory and Processor
Processor Brand: Intel
Processor Number: I210
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Status Indicators: Link/activity, Port transmission speed
Dimensions and Weight
Width: 0.7 inch
Depth: 2.6 inch
Included Items
Included Accessories: Full-height bracket, Low-profile bracket
Certifications and Listing
Compliant Standards #2: BSMI, C-Tick, FCC Class B certified, KCC, UL, VCCI
Compliant Standards: IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Compliant Standards: BSMI, C-Tick, FCC Class B certified, KCC, UL, VCCI
