Product Information

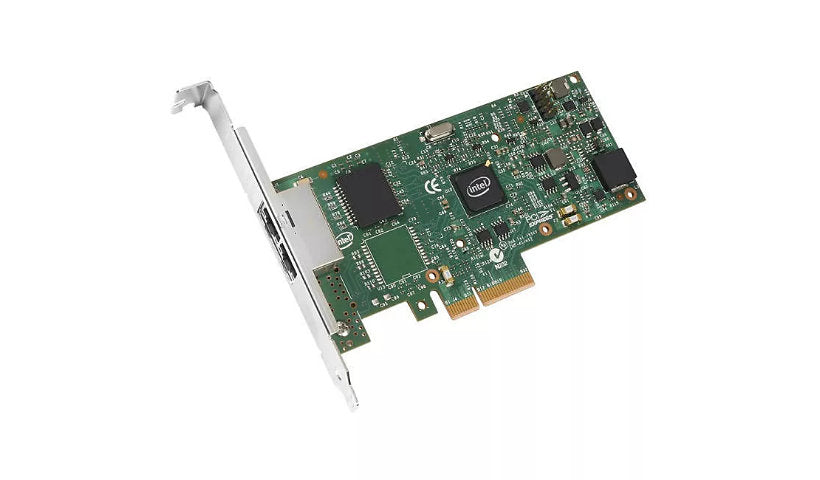

The Intel Ethernet Server Adapter I350-T2 (I350T2V2) is the retail boxed dual port Gigabit card, with two RJ-45 ports on a low profile PCIe 2.1 x4 interface and the Intel I350 controller. It offers VMDq for virtualized servers, iSCSI unified networking, Energy Efficient Ethernet and DMA coalescing, drawing about 4.4 W. Full height and low profile brackets are included, and listed operating systems include Windows, Windows Server, Red Hat, SUSE, FreeBSD and Linux.
Key Features
- 2 x Gigabit RJ-45 ports
- Intel I350 controller
- PCIe 2.1 x4
- VMDq support
- About 4.4 W power draw
- Retail box, both brackets
Product Information
Package Type: Retail
Brand: Intel
Manufacturer: Intel
Product Line: Intel Ethernet Server Adapter
Model: I350-T2
Product Type: Network adapter
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Operating System Required: FreeBSD 9, Linux, Linux Kernel 2.6.x, Linux Kernel 3.x, Microsoft Windows 2003, Microsoft Windows 2003 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Vista / 7 / 8, Microsoft Windows XP Professional, Red Hat Enterprise Linux 5, Red Hat Enterprise Linux 6, SuSE Linux Enterprise Server 10, SuSE Linux Enterprise Server 11, VMware ESX, VMware ESXi
Features: Virtual Machine Device Queues (VMDq)
Connectivity
PCI Specification Revision: PCIe 2.1
Port Quantity: 2
Interface Provided: 2 x 1000Base-T - RJ-45
Network & Adapter Ports: 1000Base-T
Host Interface: PCI Express 2.1 x4
Power
Power Consumption Operational: 4.4 watt
Memory and Processor
Processor Brand: Intel
Processor Number: I350
Processors Installed: 1
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Included Items
Included Accessories: Full-height bracket, Low-profile bracket
Certifications and Listing
Compliant Standards: ACPI, BSMI, C-Tick, FCC, KCC, UL, VCCI
Warranty
Service Activation: No
