Product Information

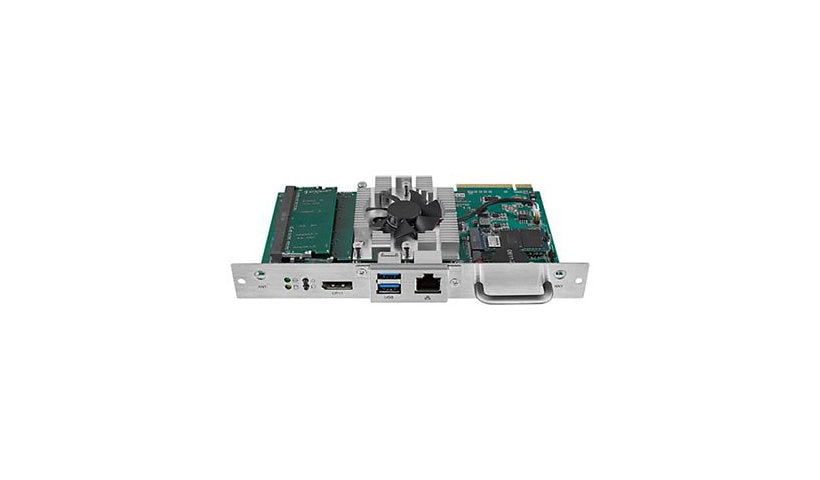

Intel's Smart Display Module Advanced slots into a compatible display to run signage content, and it is not a standalone CPU. It runs a 10-core Intel Core i5-1235U with 8 GB of DDR4 RAM and Intel Iris Xe Graphics, is built for 24/7 operation and includes a TPM security chip. Ports include DisplayPort, two USB 3.2 Gen 2, Gigabit LAN and RS-232 serial.
Key Features
- Intel Core i5-1235U, 10 cores
- 8 GB DDR4 RAM
- Intel Iris Xe Graphics
- DisplayPort, 2 x USB 3.2 Gen 2, Gigabit LAN, RS-232
- Audio line-in and headphone mini-jacks
- 24/7 operation, TPM security chip
Product Information
Brand: Intel
Manufacturer: Sharp Electronics
Product Line: Intel Smart Display Module
Model: Advanced
Product Type: Slot-in digital signage player
Packaged Quantity: 1
Color Category: Green, Silver
Network and Communication
Key Features: Digital audio player, Digital photo viewer, Digital video player
Features: 24/7 operation, Smart display module large, Trusted Platform Module (TPM) Security Chip
Connectivity
Connection Types: 2 x USB 3.2 Gen 2, Audio line-in - mini-jack, DisplayPort, Headphones - mini-jack, LAN (Gigabit Ethernet), Serial - RS-232
Interfaces: DisplayPort, Gigabit Ethernet, Serial, USB 3.2 Gen 2
Memory and Processor
Graphics Controller Model: Intel Iris Xe Graphics
Cores: 10-core
Processor Brand: Intel
Processor Type: Core i5
Processor Number: i5-1235U
Processors Installed: 1
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Certifications and Listing
Compliant Standards: TMDS
ENERGY STAR Certified: No
TCO Certified: No
