Product Information

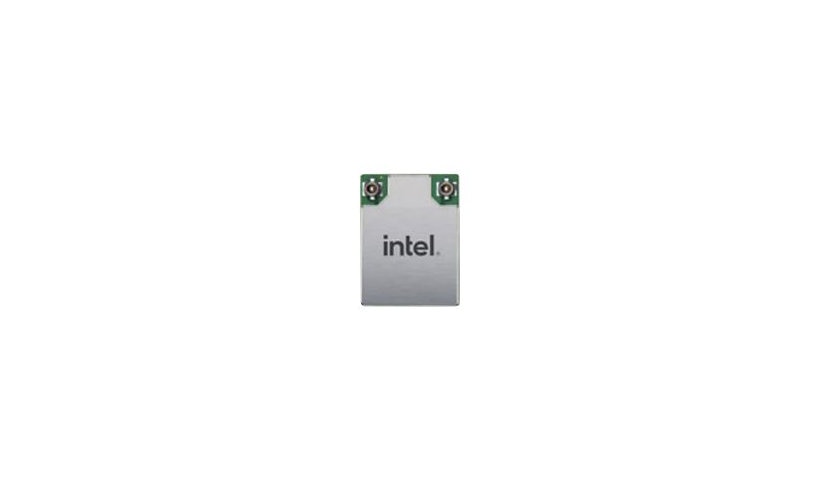

The Intel Wi-Fi 6E AX210 (AX210.NGWG) is an M.2 2230 wireless card with dual stream (2x2) Wi-Fi on the 2.4, 5 and 6 GHz bands plus Bluetooth 5.2. It supports 1024-QAM, MU-MIMO, Wi-Fi Direct, WMM and Intel vPro, with TCP throughput above 2 Gbps, and WPA3 and enterprise EAP security. It works with Windows 10, Linux and ChromeOS.
Key Features
- Wi-Fi 6E, 2x2
- Bluetooth 5.2
- M.2 2230 card
- 2.4, 5 and 6 GHz
- WPA3 and 802.1x
- Windows, Linux, ChromeOS
Product Information
Brand: Intel
Manufacturer: Intel
Product Line: Intel Wi-Fi 6E
Model: AX210
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 802.11ax, Bluetooth 5.2, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: 128-bit AES, 256-bit AES-GCMP, CCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WPA2, WPA3
Line Coding Format: 1024 QAM
Operating System Required: Google Chrome OS, Linux, Windows 10
Features: 2x2 MU-MIMO technology, 802.1x authentication, Dual-stream (2x2), Intel vPro Technology support, Wi-Fi 6E technology, Wi-Fi Direct, Wi-Fi Multimedia (WMM) support
Connectivity
Host Interface: M.2 2230
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 176 degree Fahrenheit
Operating Humidity: 50 - 90% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Height: 0.9 inch
Width: 1.2 inch
Depth: 0.9 inch
Weight: 0.1 ounce
Certifications and Listing
Compliant Standards #2: CB, IEC 60950-1, UEFI, UL
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1x, Wi-Fi CERTIFIED 6
Compliant Standards: CB, IEC 60950-1, UEFI, UL
ENERGY STAR Certified: No
Warranty
Service Activation: No
Not sure this wireless adapter fits your system? Send us your computer or device model and the DatorPro team will confirm compatibility before you order.
