Product Information

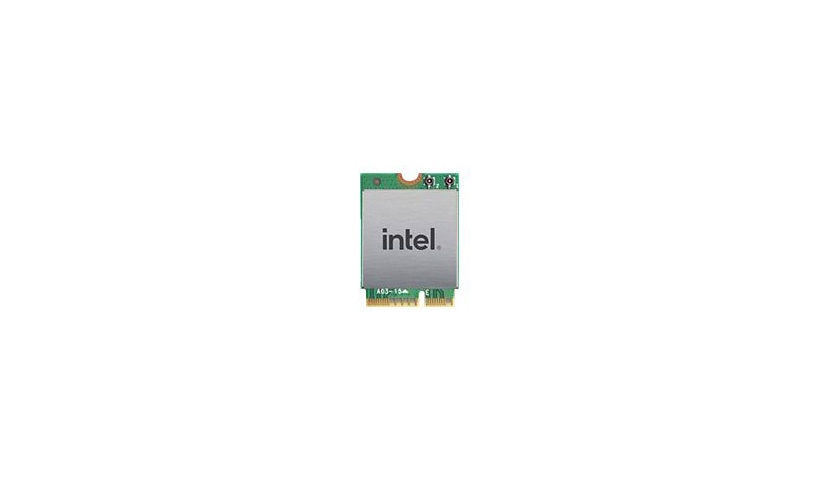

The Intel Wi-Fi 6E AX211 is a plug in card in the M.2 2230 format with a CNVio2 interface, adding tri band Wi-Fi 6E and Bluetooth 5.2 to a compatible system. It supports 160 MHz channels and 2x2 MU-MIMO for data rates up to 2.4 Gbps. This is a network adapter card, not a router.
Key Features
- Wi-Fi 6E on 2.4, 5 and 6 GHz bands
- Up to 2.4 Gbps, 160 MHz channels, 2x2 MU-MIMO
- Bluetooth 5.2
- M.2 2230 CNVio2 host interface
- WPA3, 802.1x, FIPS 140-2 listed
- Windows 10, Windows 11, Linux and Chrome OS
Product Information
Brand: Intel
Manufacturer: Intel
Product Line: Intel Wi-Fi 6E
Model: AX211
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green, Silver
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 802.11ax, Bluetooth 5.2, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: 128-bit AES-CCMP, 256-bit AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, FIPS 140-2, MSCHAPv2, PEAP, WPA2, WPA3
Data Transfer Rate: 2.4 GBps
Line Coding Format: 1024 QAM, OFDMA
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Operating System Required: Google Chrome OS, Linux, Windows 10, Windows 11
Features: 160MHz bandwidth support, 2x2 MU-MIMO technology, 802.1x authentication, Wi-Fi Direct, Wi-Fi Multimedia (WMM) support
Connectivity
Host Interface: M.2 2230 (CNVio2)
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 176 degree Fahrenheit
Operating Humidity: 50 - 90% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Height: 0.9 inch
Width: 1.2 inch
Depth: 0.1 inch
Weight: 0.1 ounce
Certifications and Listing
Compliant Standards #2: CB, cUL, FISMA, IEC 60950-1, UL
Compliant Standards: Bluetooth 5.2, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11az, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1x, Wi-Fi CERTIFIED 6E
Compliant Standards: CB, cUL, FISMA, IEC 60950-1, UL
Warranty
Service Activation: No
