Product Information

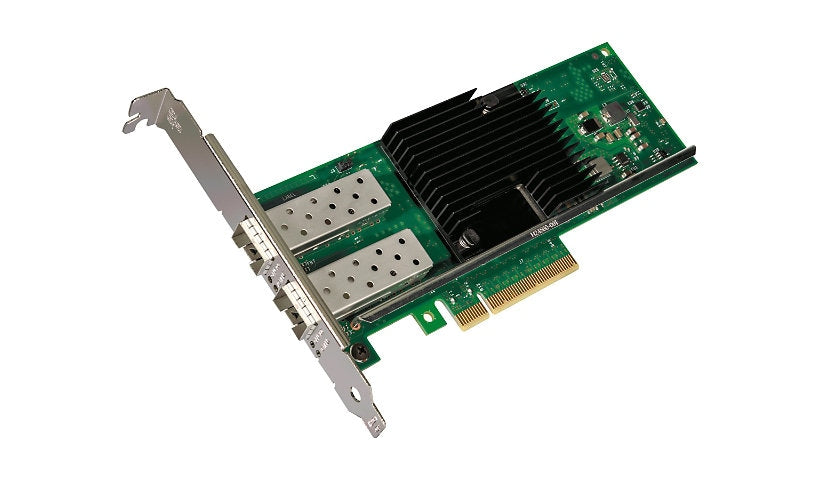

The Intel Ethernet Converged Network Adapter X710-DA2 (EX710DA2G1P5) has two SFP+ ports that run at 10 or 1 Gigabit Ethernet, on a low profile PCIe 3.0 x8 card powered by the Intel X710 controller. It supports SR-IOV, Data Center Bridging, iSCSI and PXE boot, RSS, TSO and LSO, teaming and load balancing, with iSCSI, NFS and SMB storage traffic. Listed operating systems include Windows Server, Red Hat, SUSE, FreeBSD and VMware ESXi.
Key Features
- 2 x 10GbE SFP+ ports
- Intel X710 controller
- PCIe 3.0 x8
- SR-IOV and DCB
- iSCSI and PXE boot
- Low profile card
Product Information
Brand: Intel
Manufacturer: Intel
Product Line: Intel Ethernet Converged Network Adapter
Model: X710-DA2
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Gigabit Ethernet
Network Standard: iSCSI, NFS, SMB, TCP/IP, UDP/IP
Remote Management: RMON, SNMP
Data Transfer Rate: 10 GBps
Operating System Required: FreeBSD 10, FreeBSD 9, Linux Kernel 2.6.32, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Red Hat Enterprise Linux 6.5, Red Hat Linux 7.0, SuSE Linux Enterprise Server 11 SP3, SuSE Linux Enterprise Server 12, VMware ESXi 5.1, VMware ESXi 5.5
Features: Adaptive load balancing (ALB), Checksum offload support, Data Center Bridging (DCB), Energy Efficient Ethernet, Flow control, Giant Send Offload (GSO), IPv4 support, IPv6 support, iSCSI boot, Large Send Offload (LSO), Packet filtering, PXE support, Quality of Service (QoS), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), TCP/IP offloading, Teaming support, UDP/IP offloading, Virtual Machine Device Queues (VMDq), VLAN support, Watch Dog Timer (WDT)
Connectivity
Port Quantity: 2
Interface Provided: 2 x 1Gb Ethernet/10Gb Ethernet - SFP+
Network & Adapter Ports: 10 Gigabit SFP+
Host Interface: PCI Express 3.0 x8
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Status Indicators: Link/activity, Port transmission speed
Dimensions and Weight
Height: 2.7 inch
Depth: 6.6 inch
Certifications and Listing
Compliant Standards #2: BSMI, C-Tick, Directive 2011/65/EU, FCC Class B certified, KCC, MSA SFF-8431, RoHS, UL, VCCI
Compliant Standards: IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.3, IEEE 802.3ad (LACP)
Compliant Standards: BSMI, C-Tick, Directive 2011/65/EU, FCC Class B certified, KCC, MSA SFF-8431, RoHS, UL, VCCI
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
