Product Information

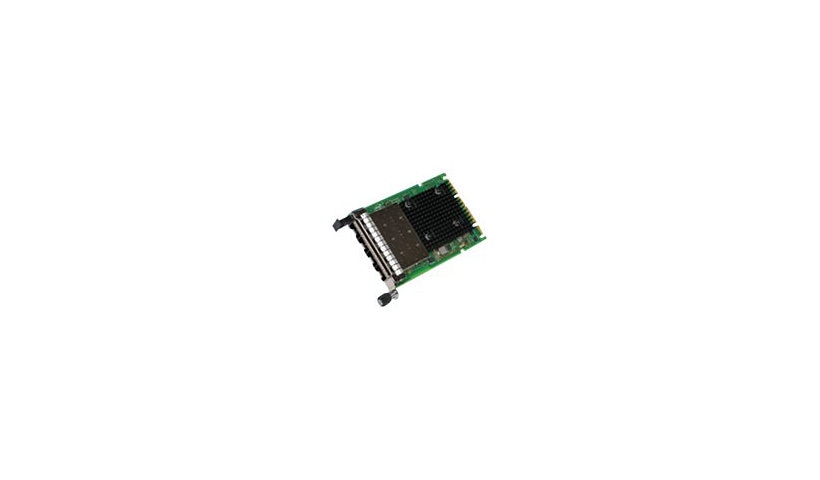

This OCP 3.0 version of Intel's X710-DA4 adapter has four SFP+ ports that run at 1 or 10 Gb Ethernet, built on the Intel X710-BM1 controller. It supports up to 128 virtual functions and 4,096 VLAN tags, with DDIO, DPDK, Dynamic Device Personalization, Flexible Port Partitioning, Flow Director, MPLS and overlay offloads, plus SNMP and RMON management. It works with Windows 10 and 11, Windows Server 2012 R2 or later, FreeBSD and Linux.
Key Features
- 4 x 1/10GbE SFP+ ports
- Intel X710-BM1
- OCP 3.0 form factor
- 128 virtual functions
- DDP and DPDK
- Windows, Linux, FreeBSD
Product Information
Brand: Intel
Manufacturer: Intel
Product Line: Intel Ethernet Network Adapter
Model: X710-DA4 for OCP 3.0
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Green
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Gigabit Ethernet
Network Standard: IPv4, IPv6, iSCSI, MCTP, NFS, RBT, SCTP, TCP, TCP/IP, UDP, UDP/IP
Cable Type: Ethernet 10GBase-LR, Ethernet 10GBase-SR
Remote Management: RMON, SNMP
Capacity: Virtual functions: up to 128, VLAN tags: up to 4096
Operating System Required: FreeBSD 12.4, FreeBSD 13.1, Linux, Microsoft Windows 10 / 11, Microsoft Windows Server 2012 R2 or later
Features: Adaptive Virtual Function, Built-in ASIC, Data Direct I/O Technology (DDIO), Data Plane Development Kit (DPDK), Dynamic Device Personalization (DDP), Enhanced Network Virtualization Overlays (NVO), Extended Message-Signaled Interrupts (MSI-X), Flexible Port Partitioning (FPP), GENEVE support, Intel Flow Director, Intelligent offloads, Message Signaled Interrupts (MSI), MPLS support, Network Controller Sideband Interface (NC-SI), Network Function Virtualization (NFV), Network Virtualization using Generic Routing Encapsulation (NVGRE), On-chip QoS and Traffic Management, PXE support, Single Root I/O Virtualization (SR-IOV), UEFI support, Virtual Extensible LAN (VXLAN), Virtual Machine Device Queues (VMDq), Virtualization Technology for Connectivity (VT-c), VLAN support, VM Load Balancing (VMLB), VxLAN-GPE with Network Service Headers (NSH), Watch Dog Timer (WDT)
Connectivity
PCI Specification Revision: PCIe 3.0
Port Quantity: 4
Interface Provided: 4 x 1000Base-X/10GBase-SR/LR - SFP+
Network & Adapter Ports: Gigabit Ethernet / 10 Gigabit SFP+
Host Interface: Open Compute Project mezzanine (OCP) 3.0
Memory and Processor
Processor Brand: Intel
Processor Number: X710-BM1
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 90% RH (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Status Indicators: Link/activity/speed
Dimensions and Weight
Height: 3 inch
Depth: 4.5 inch
Certifications and Listing
Compliant Standards #2: IEEE 802.1as, OCP 3.0
Compliant Standards: BSMI, C-Tick, FCC Class A certified, IEEE 1588, KCC, RoHS, ROHS Directive 2011/65/EU, UL, VCCI
Compliant Standards: IEEE 802.1as, OCP 3.0
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
